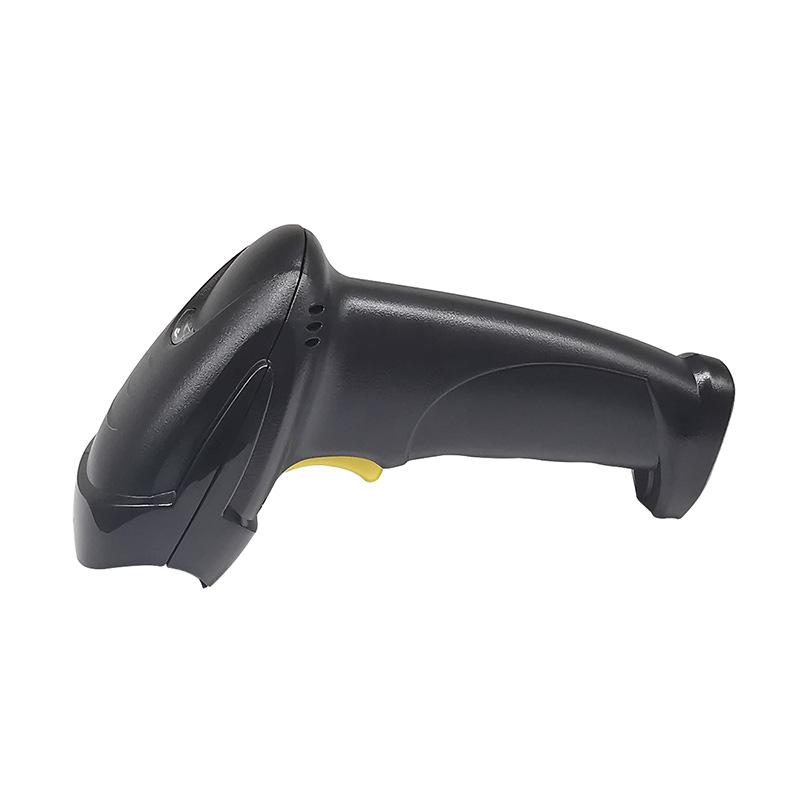

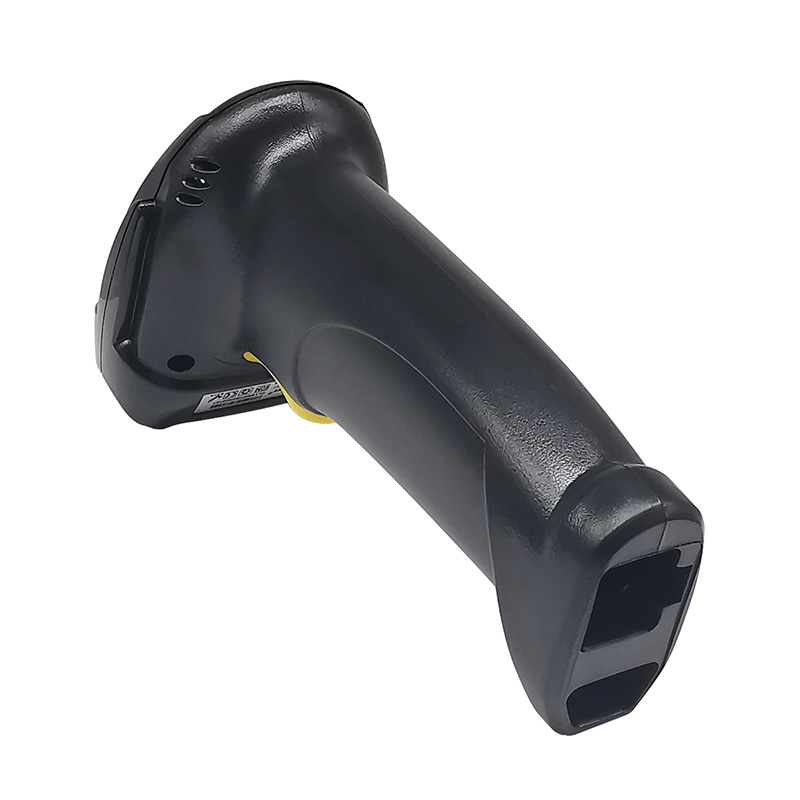

Qian's Kuai QLL-59007 barcode scanner has full compatibility with a wide range of 1D Barcodes, including UPC / EAN, Code 128m, and more.

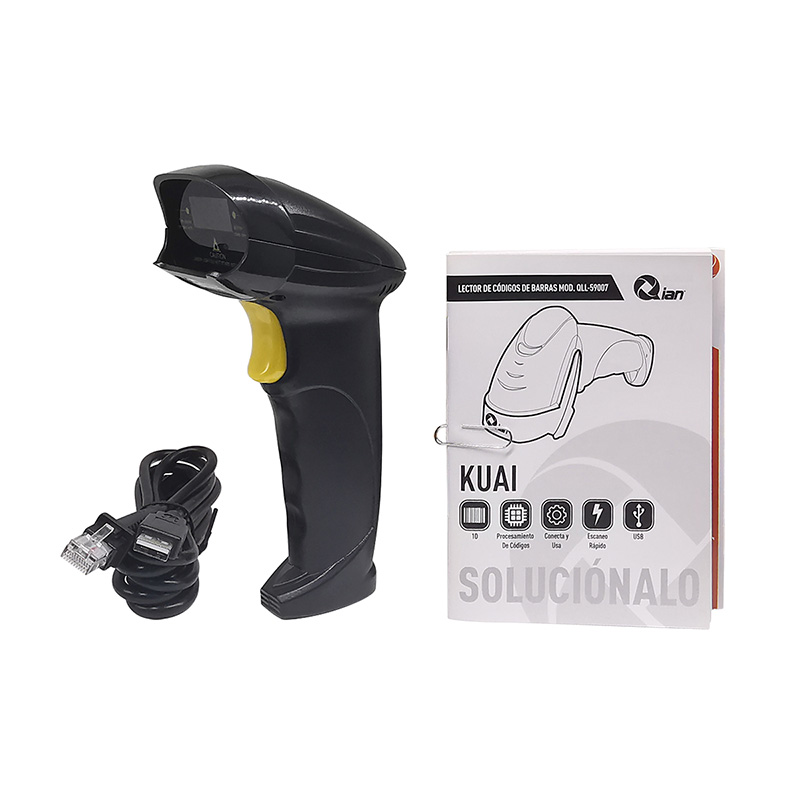

Activate its fast scan mode for simple scanning without the need to press the trigger, you can also refer to the included manual to activate other types of settings.
You don't need to install any software or apps, just plug it into your computer's USB, RS232 or PS/2 port and start scanning. Compatible with Windows, Linux, Android OS or Mac computers.
| INTERFACE SUPPORTED | USB |
| CABLE LENGTH | 1.8m |
| CONNECTIVITY TECHNOLOGY | Wired |
| INPUT VOLTAGE | DC 5V ±10% |
| CURRENT | 50mA(Operating), 40mA(Stand By), 100mA(Max) |
| LIGHT SOURCE | 650nM visible laser |
| SCAN RATE | 200 scans/ seconds |
| SCANNING ANGLE | Pitch45º, Skew 60º (Scanning Distance: 10-600mm) |
| MIN. RESOLUTION | Min: 0.1mm(4mil) PCS0.9 |
| MIN PCS VALUE | >25%UPC/EAN 13(13mil) |
| AMBIENT LIGHT | Up to 1,000,000 lx |
| LANGUAGE | Support multiple languages |
| DECODE CAPABILITY | 1D: UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code39, Code Bar, Interleaved / ITF25, Industrial 25, Code 128, Code 93, Code 11, MSI/PIESSEY, UCC/EAN128 |
| COMPATIBILITY | Windows, Android, Linux, MAC OS |
| MECHANICAL SHOCK | 1.5m free fall on concrete surface |
| OPERATING TEMPERATURE | -20ºC~50ºC |
| STORAGE TEMPERATURE | -20ºC~60ºC |
| OPERATING HUMIDITY | 0~95% |
| STORAGE HUMIDITY | 5~95% |
| DIMENSIONS | 167*97*65mm |
| WEIGHT | 150g |
