load and scan
• 1D and 2D barcode scanning
• 300,000 pixel high performance scanning engine
• High density barcode scanning for high performance
• Low power design can scan 20,000 times
• Compatible with Windows, Android, iOS and Linux
- Home
- QIAN PC
- POS Solutions
- BUSINESS WE TRUST
- AUTHORIZED DISTRIBUTORS
top decoding
It has 1D and 2D barcode scanning compatibility, perfect for all types of businesses.
Unlimited Connectivity

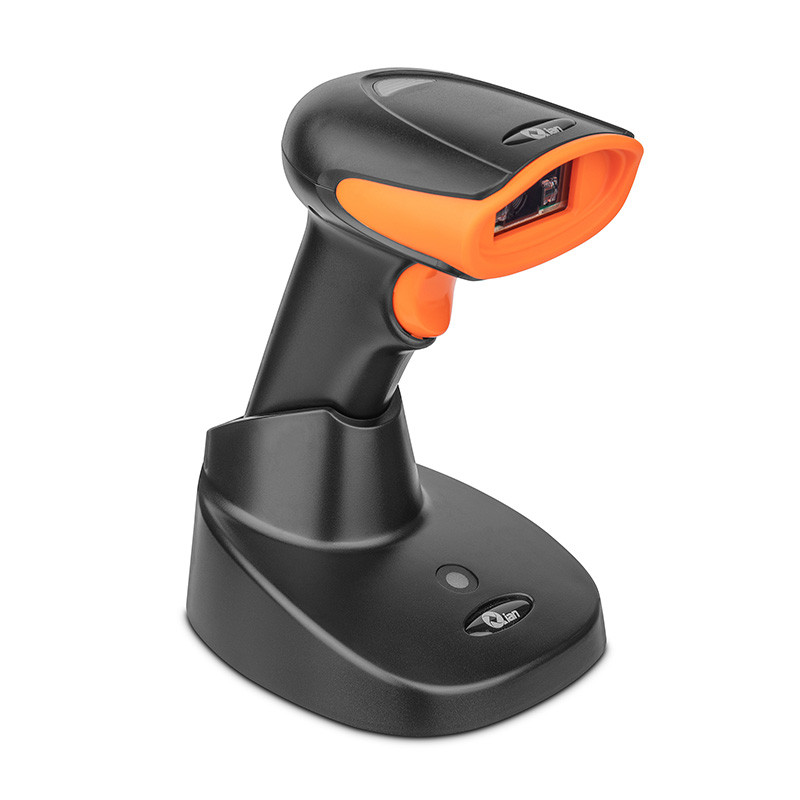

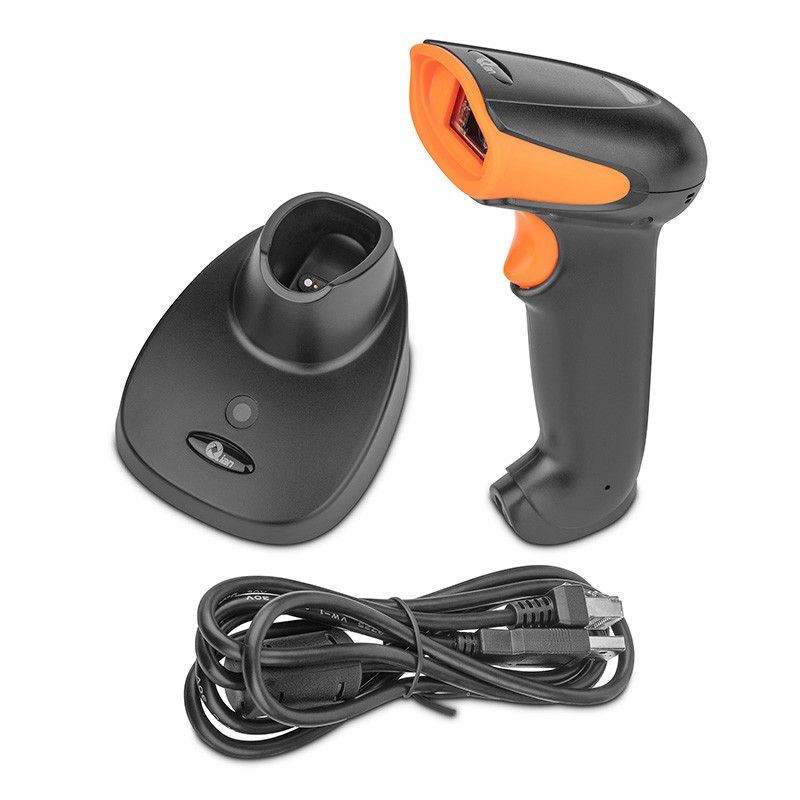

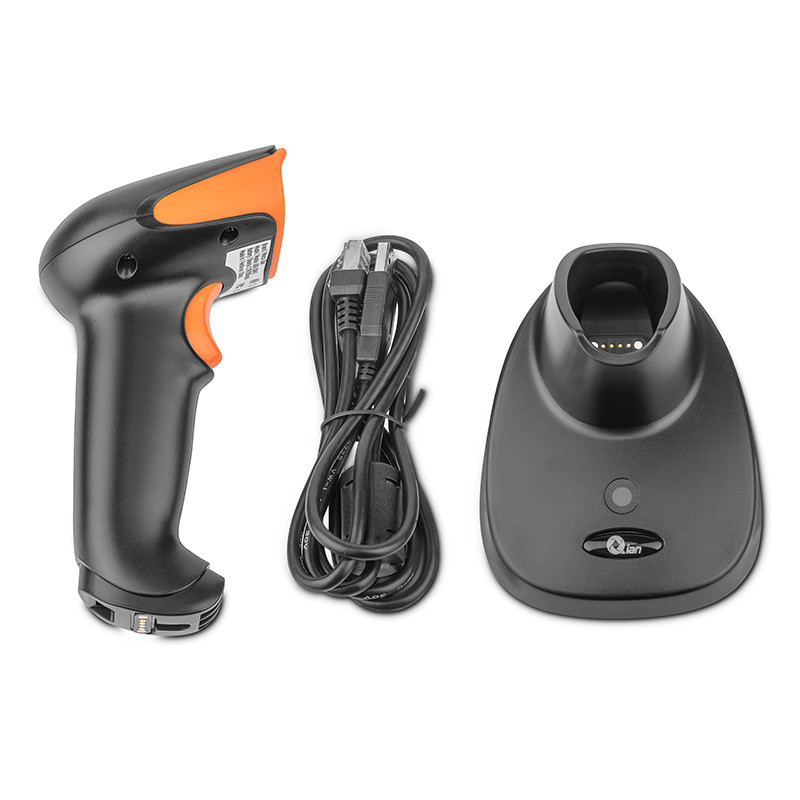

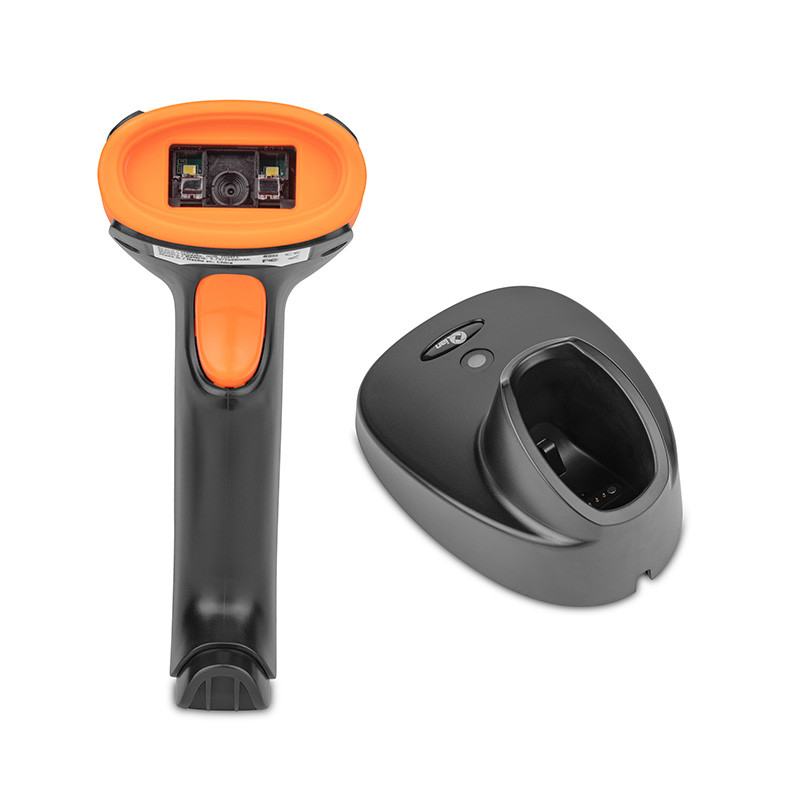

• 2D barcode scanner

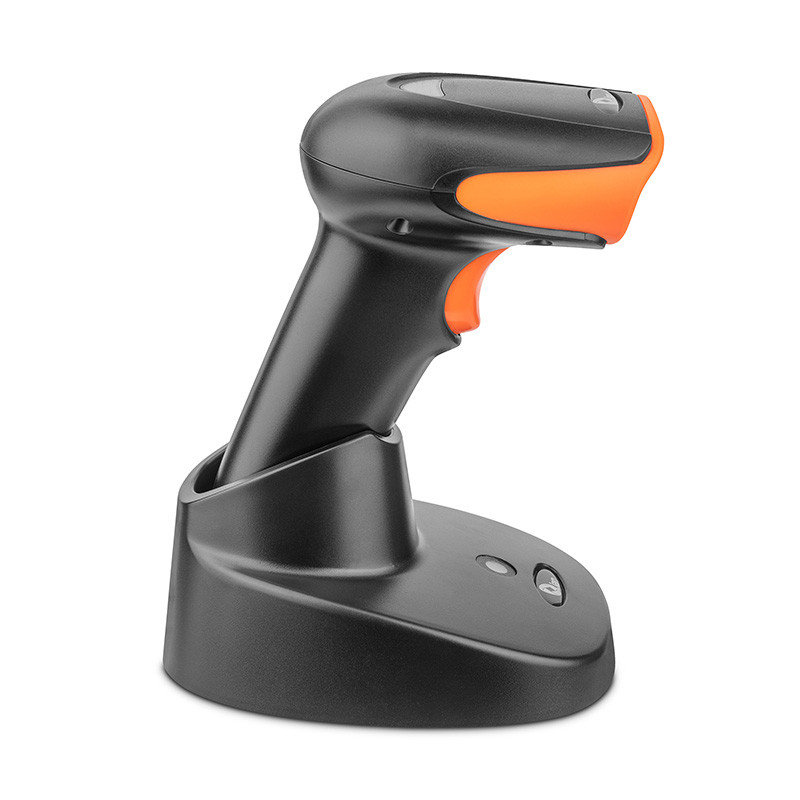

• Charging base
• 2.4G USB Receiver

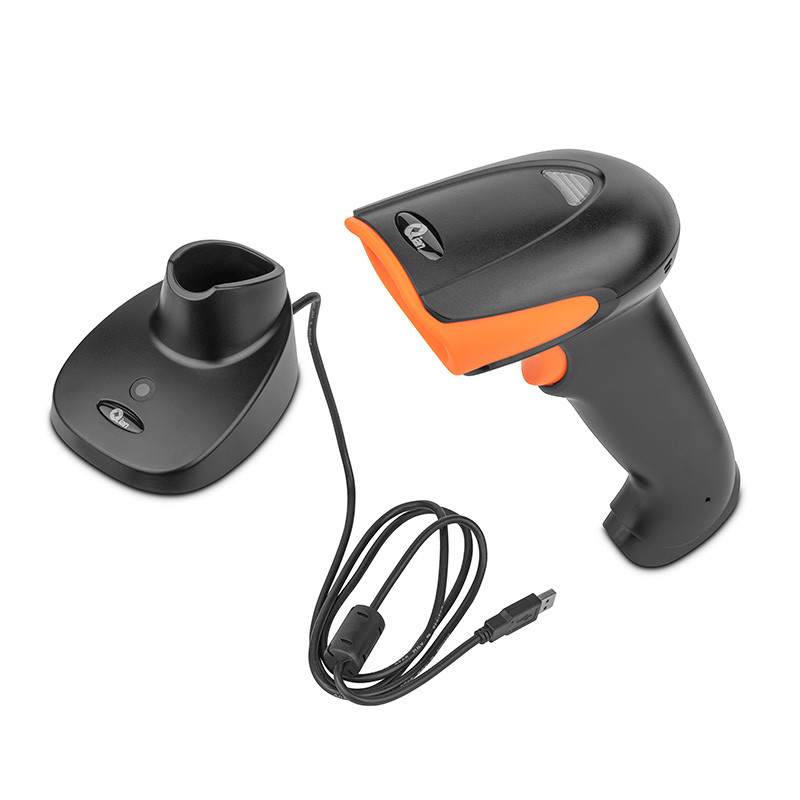

• USB cable for the charging base
MULTIPLE COMPATIBILITY
The charging base barcode scanner is compatible with multiple operating systems including Windows, Android, iOS and Linux
Scan more, load less!
• Battery: 3.7 V/2500 mAh
• 20,000 times scanning and transmission.
• Charging time of 6 hours.
• 16 hours of work.
| INTERFACE | USB+ 2.4G+ BT |
| BATTERY | 3.7V/2500mAh (20000 times scan and transmission) Charging time: about 6 hours, Working time: about 16 hours |
| VOLTAGE | Working voltage: +4.2V±10% VDC |
| CURRENT | 226mA (Working) ; 204mA (Starting) ; 96mA (Standby) |
| INDICATOR | LED / buzzer |
| LIGHTING TYPE | White LED |
| AIM LIGHT SOURCE | Red LED |
| SENSOR | CMOS |
| SENSOR RESOLUTION | 640*480 |
| CONTRAST RATE | 15% |
| SCANNING ANGLE | 65°(Yaw), 65°(Pitch), 360°(Roll) |
| DECODE CAPABILITY | 1D : Codabar, Code 39, Code 32 Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, China Post(Hong Kong 2 of 5), Korea Post 2D: QR Code, Codeblock A, Codeblock F, PDF417, Micro PDF417, GS1 Composite Codes, Data Matrix, MaxiCode, Aztec, HANXIN |
| DECODING DEPTH OF FIELD | Code39(4mil): 6-15cm, Code39(5mil): 4-20cm, Code39(13mil): 6-35cm QR(15mil): 4-20cm, QR(20mil): 3-25cm, QR(30mil): 3-35cm UPC-A(13mil): 4-35cm, ENA-13(5mil): 6-15cm, ENA-13(5mil): 3-35cm |
| SHOCK DROP TEST | 1.5m free fall on the floor |
| DIMENSIONS | Scanner: 151.6mm (L) x 68.2mm (W) x 120mm (D) Base: 70.8mm (L) x 97.6mm (W) x 127.6mm (D) |
| WEIGHT | Scanner: 190g, charging base: 100g |
| WORKING ENVIRONMENT | 0℃ to 45℃, 10%~80% (No condensation) |
| STORAGE ENVIROMENT | -20℃ to 60℃,10%~90% (No condensation) |
| TOP 5 PRODUCT FEATURES | 1. 300,000 pixels high performance scanning engine 2. Low power design can scan 20,000 times 3. Scanning high density barcode has high performance 4. Superior performance for Small two-dimensional codes 5. Cradle for charging and receiving |
| OPERATING SYSTEM | Support Windows, Android, iOS |
