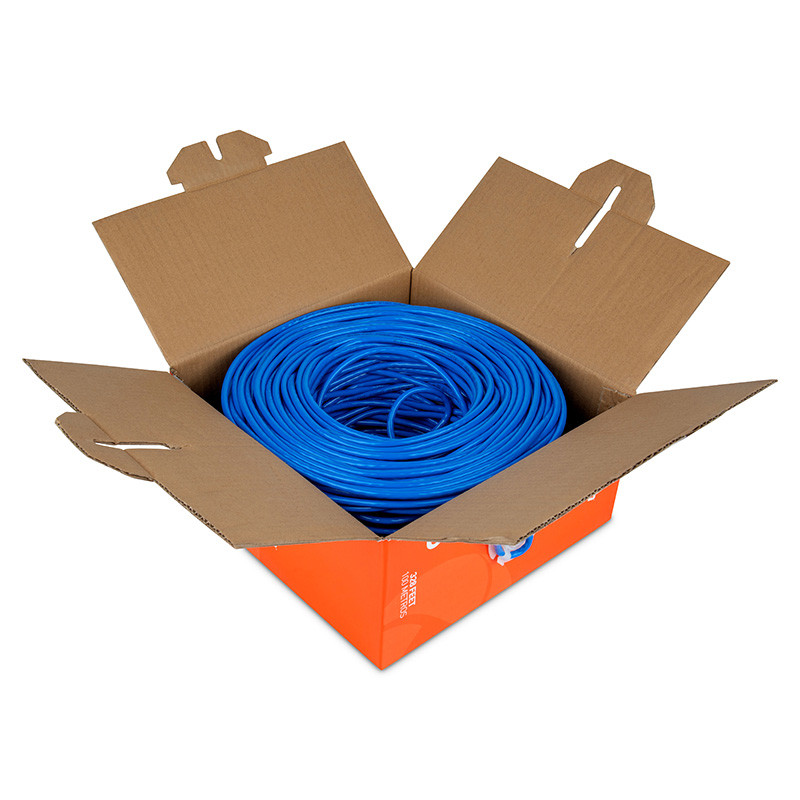

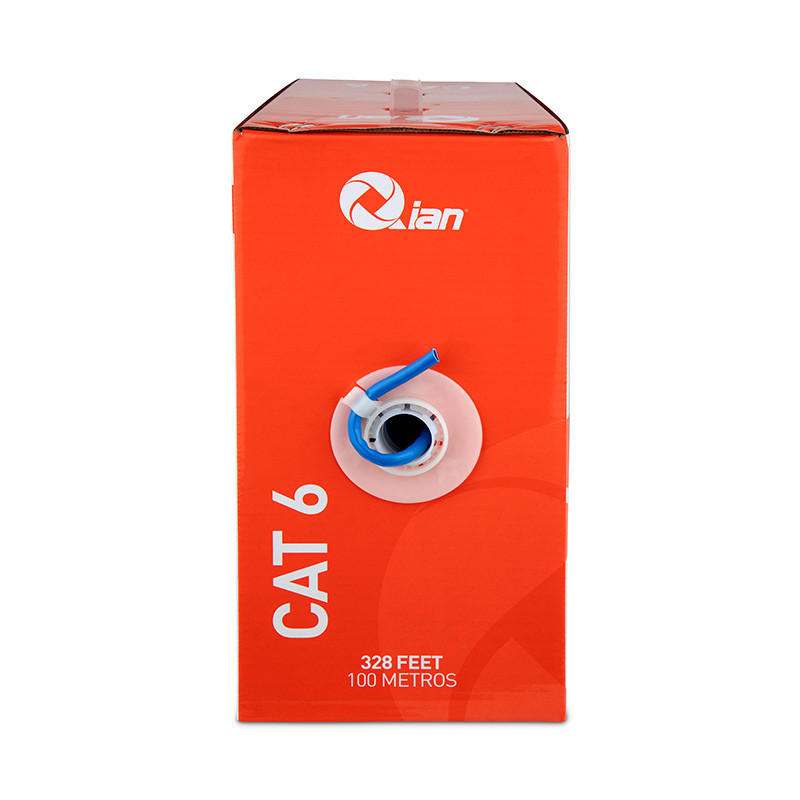

Designed with an easy-to-use roll-out box, installation is hassle-free and efficient, reducing setup time and minimizing disruption. It is designed for simplicity, making it suitable for both professional installers and tech-savvy homeowners.
With enhanced anti-crosstalk technology via the PE CROSS structure, expect pristine signal clarity and minimal interference, optimizing performance even in high-demand network environments.

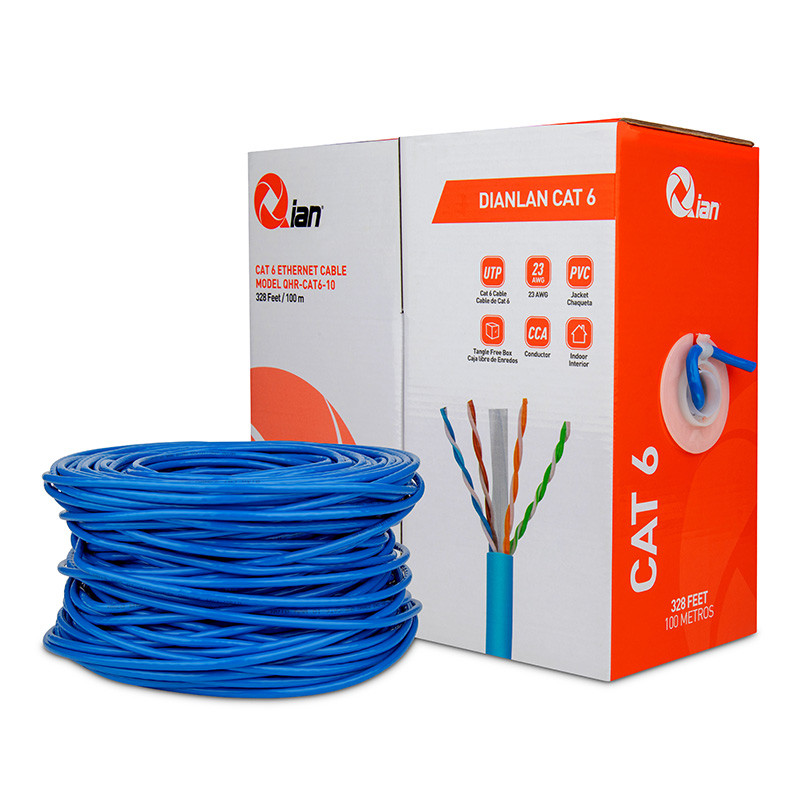

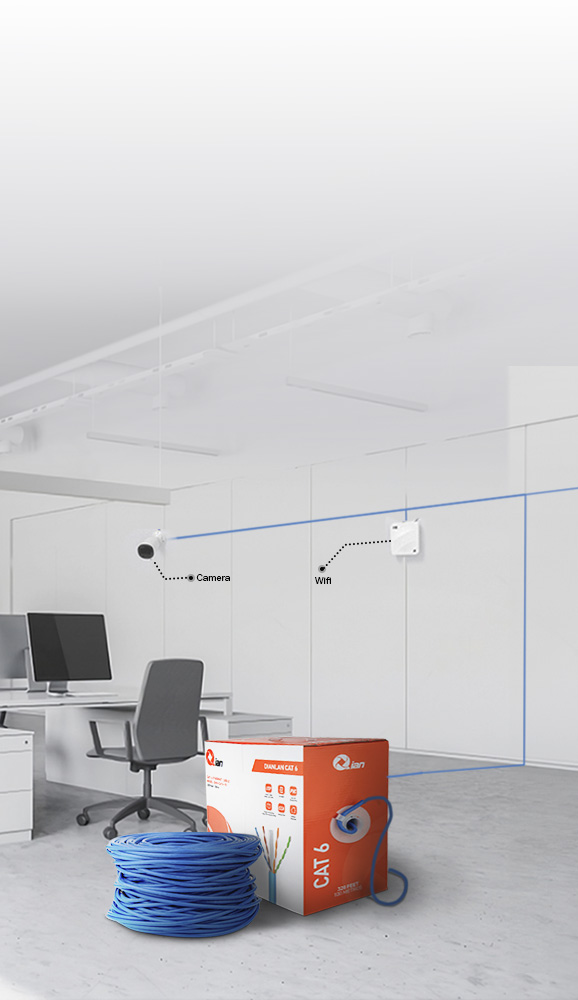

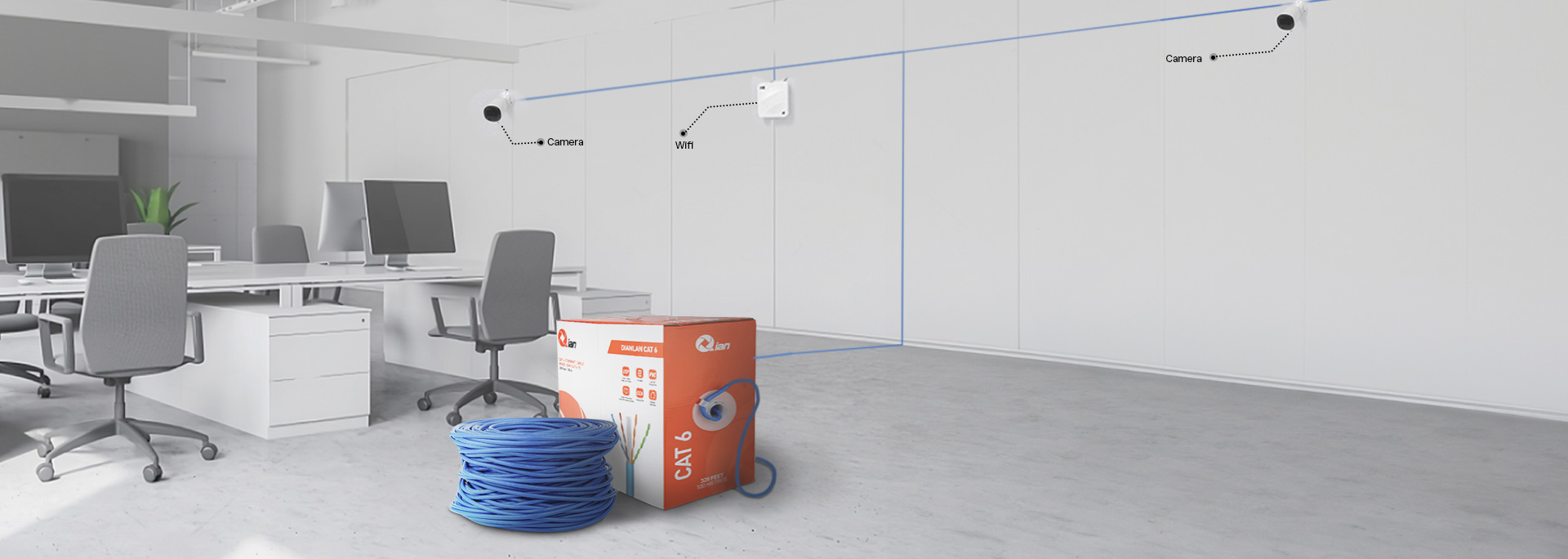

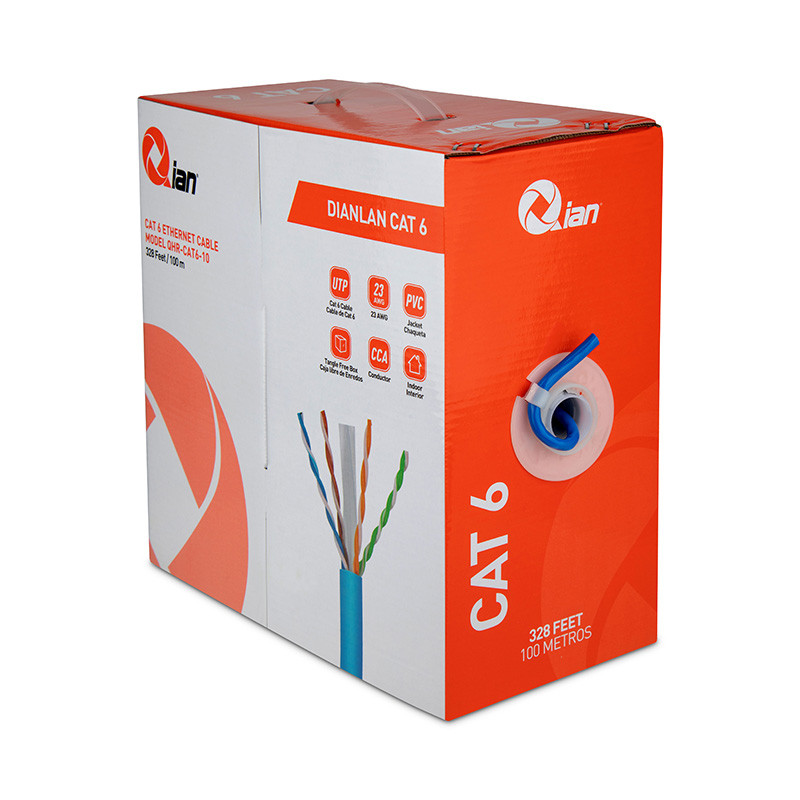

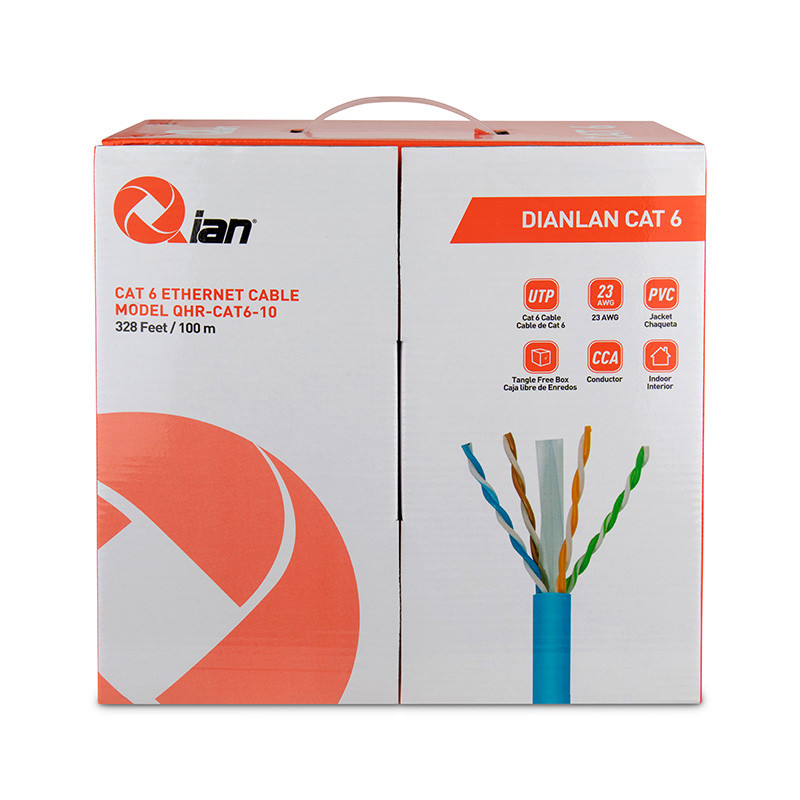

Power up your network with Qian's Cat 6 Ethernet Cable Box, offering 100-meter coverage. Perfect for homes, offices, and POE environments, it minimizes the need for additional connections while ensuring uninterrupted connectivity in larger spaces.

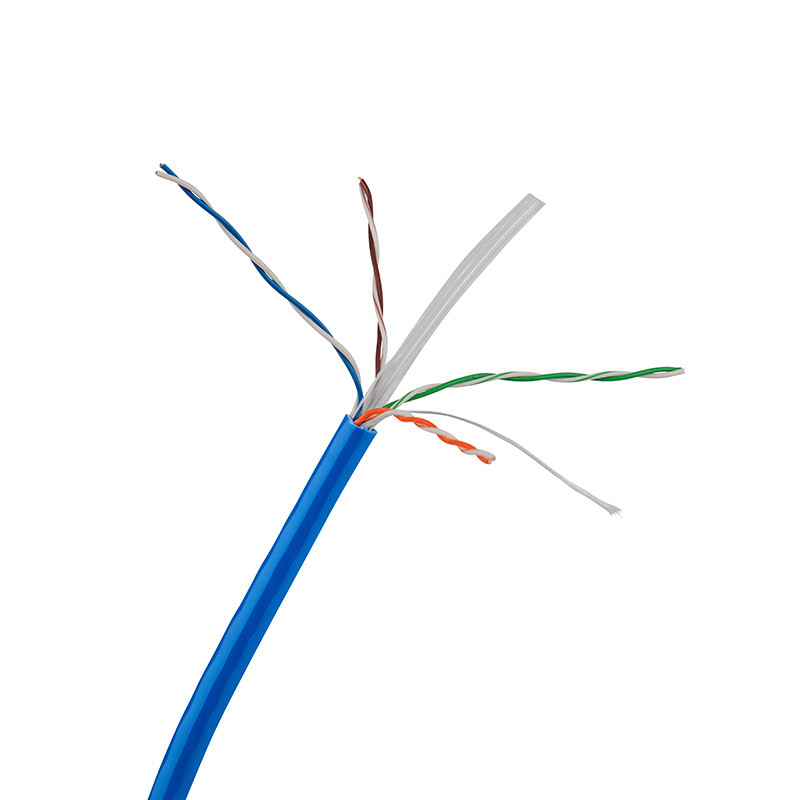

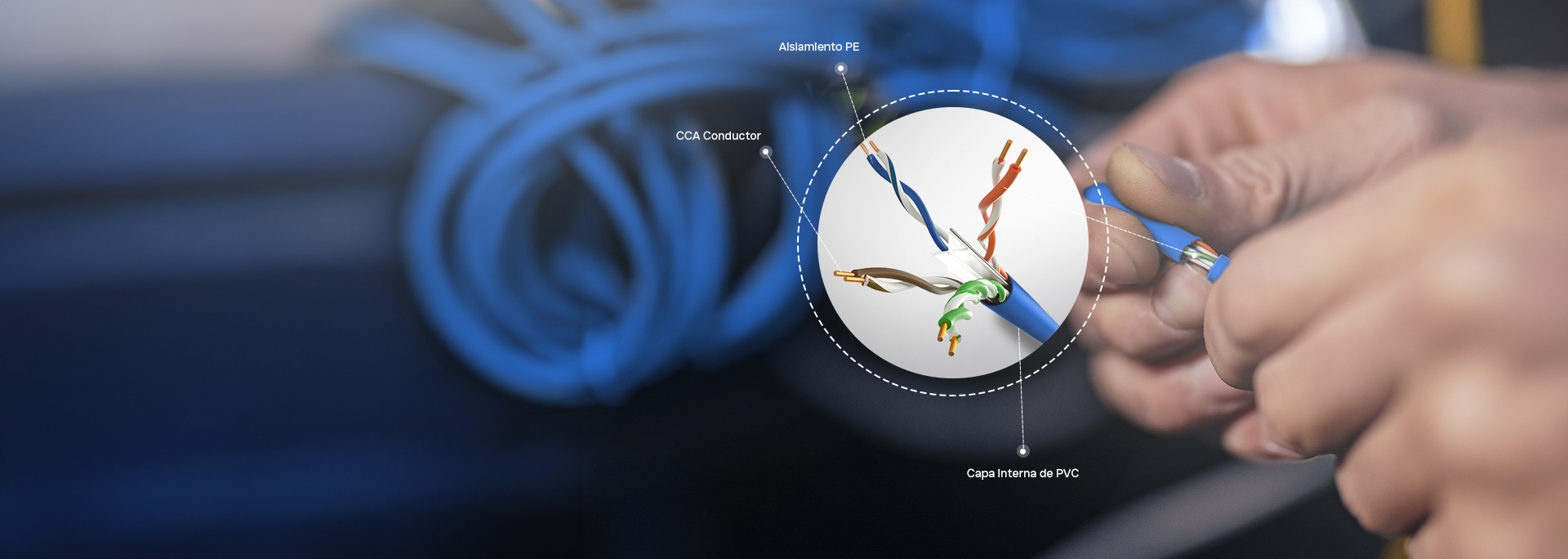

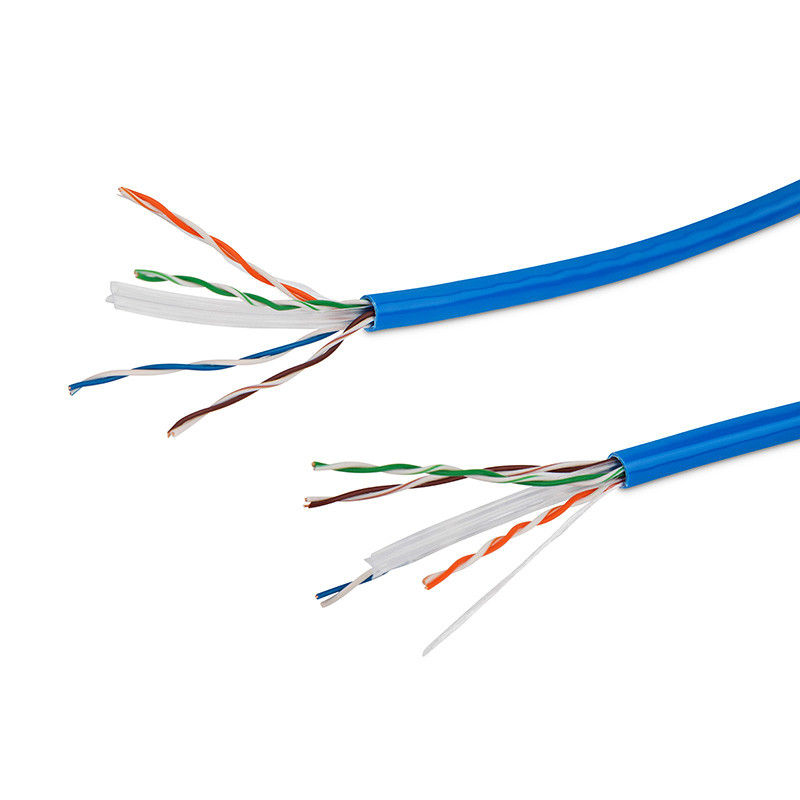

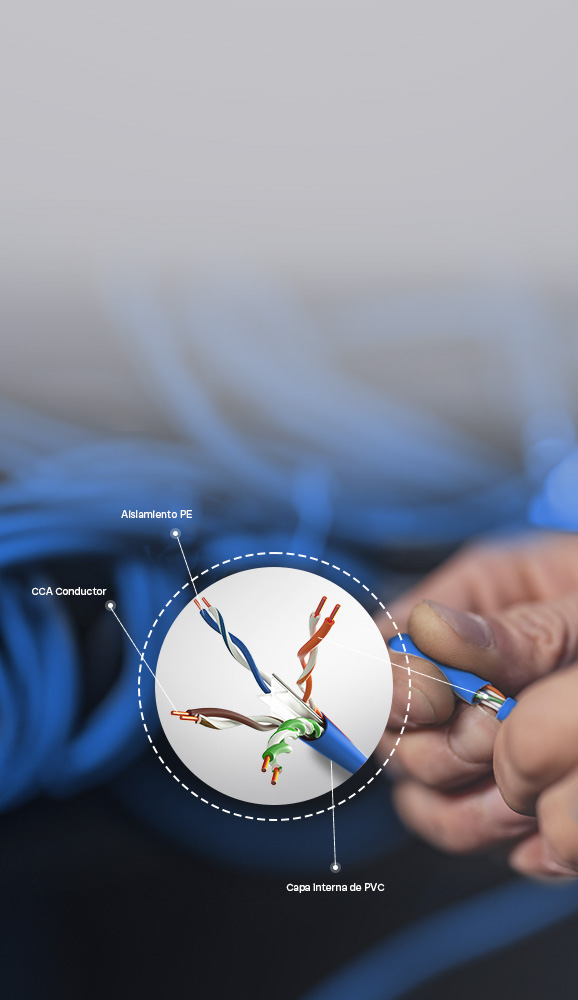

Featuring a rugged PVC jacket, PE insulation, and an innovative PE CROSS structure, the cable is built to withstand physical stress, environmental challenges, and electromagnetic interference (EMI). It ensures longevity and reliability in a variety of network environments, protecting your investment for years to come.
| CABLE TYPE | UTP Cat 6 Network Cable |
| CONDUCTOR MATERIAL | CCA |
| CONDUCTOR STRUCTURE | Solid |
| JACKET MATERIAL | PVC |
| INSULATION THICKNESS | 0.18mm |
| JACKET THICKNESS | 0.65mm (±0.02mm) |
| STRETCHING RESISTANCE | (max) 450N |
| MINIMUM BENDING RADIUS | ＞4D |
| DELAY DEVIATION | (max) 45ns/100m |
| TRANSMISSION VELOCITY | 66% |
| COLOR | Blue |
| CONDUCTOR SIZE | 23AWG (0.5mm CCA) |
| TWISTED PAIR | 4 Pairs |
| INSULATIONMATERIAL | PE |
| INSULATION DIAMETER | 1.0mm (±0.02mm) |
| OUTER DIAMETER | 6.0mm (±0.2mm) |
| IMPEDANCE | 100±15%Ω at 1~250MHz |
| DCRESISTANCEIMBALANCE | 2.5% |
| INSULATION RESISTANCE | ≥5000MΩ.km |
| OPERATING TEMPERATURE | -40 °C - 70 °C |
| CABLE LENGTH | 100m/pull out box (328ft/ pull out box) |
| APPLICATION | Home/ Small office wiring system/ Short distance POE power supply |
| DIMENSIONS | 28 x 28 x 14 cm |
| WEIGHT | 3.07kg |
