electrical troubleshooting

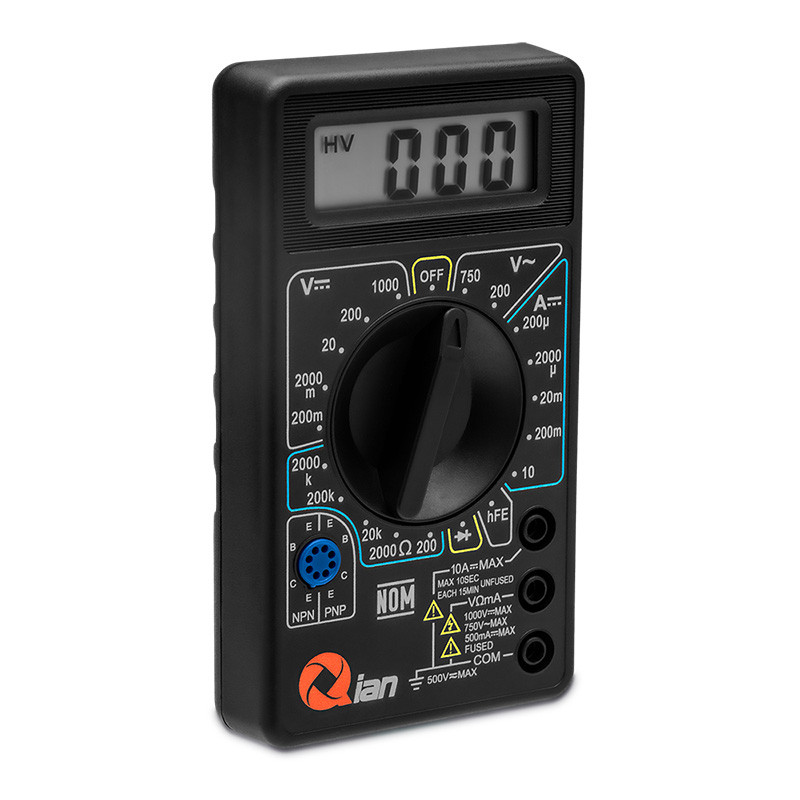

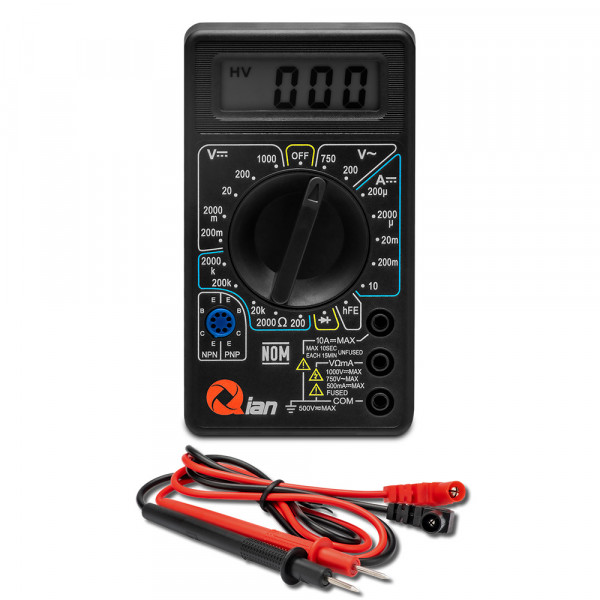

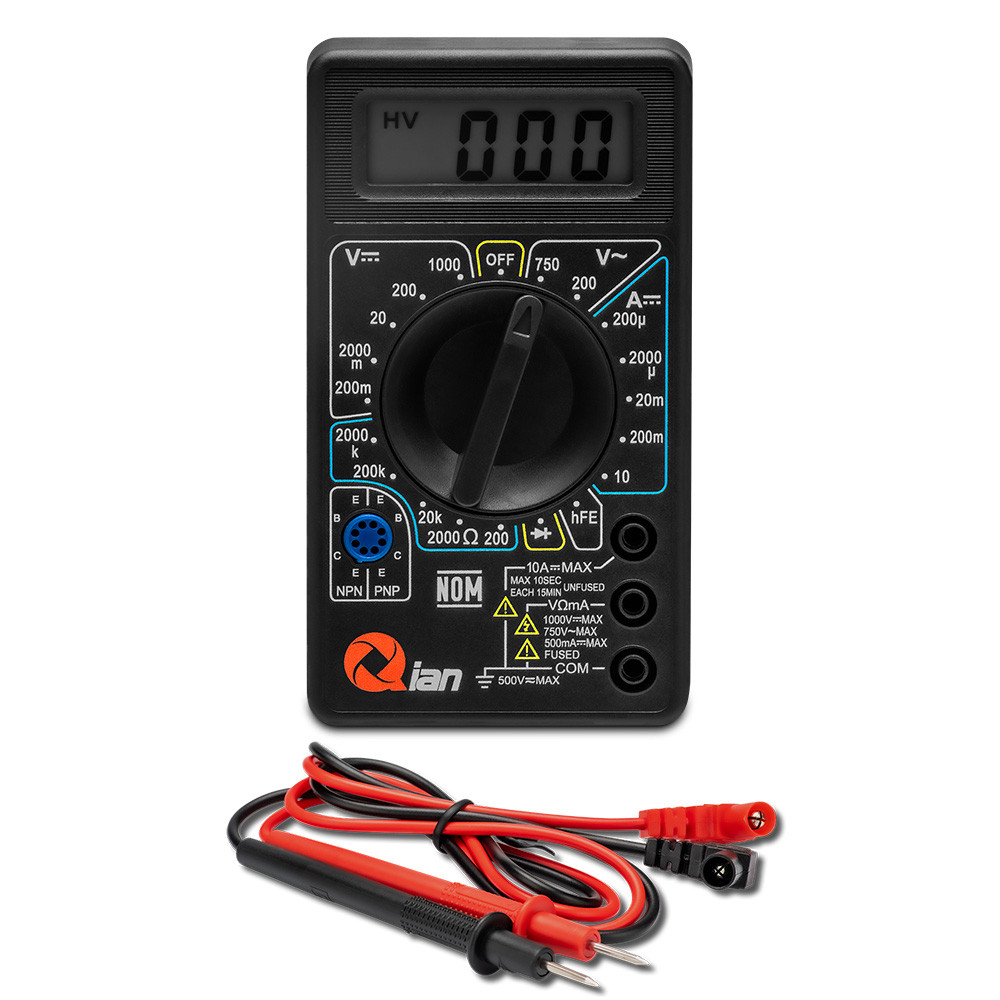

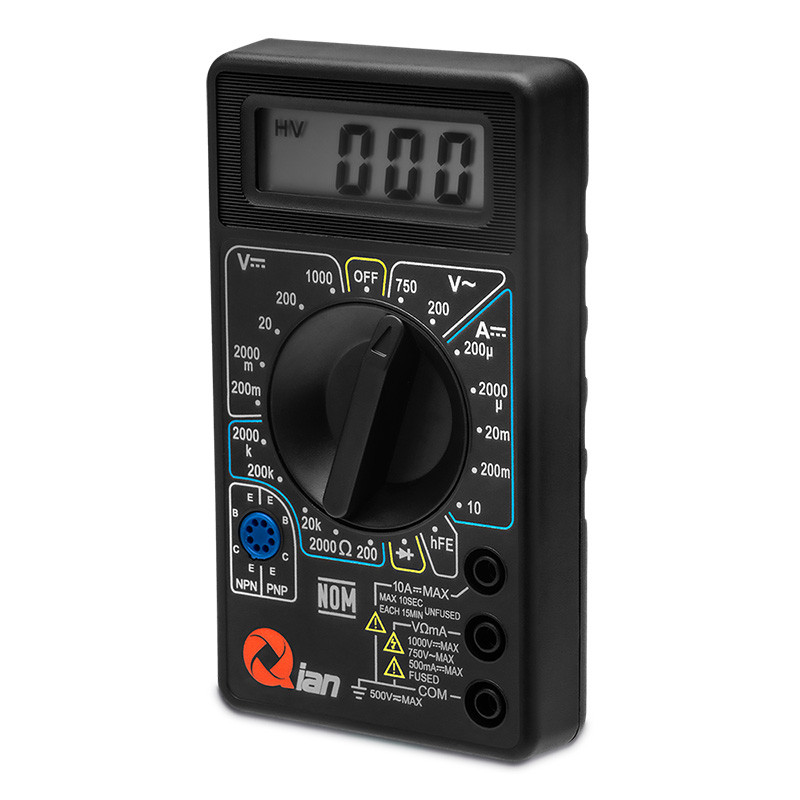

The new Qian Digital Multimeter is designed to safely and accurately troubleshoot a variety of electrical problems. It is easy and safe to operate with advanced features built in to measure AC/DC voltage, DC current, and resistance.
LCD SCREEN
With the LCD screen 3 1/2 digits allows readings to be seen clearly in spaces with little light.
USEFUL AND PRACTICAL
With a size of 70x126x26mm and a weight of 108g, the Qian Digital Multimeter is a portable and easy-to-storage tool.
| SCREEN | LCD 3 1/2 digits |
| SAMPLING RATE | 2 times per second |
| POWER | 9V NEDA 1604 or 6F22 Battery |
| DIMENSIONS | 126 x 70 x 26mm |
| WEIGHT | 108g |
| WARRANTY | 1 year |
| FEATURES | Polarity: Automatic, indicated minus, assumed plus. Measure method: Double integral A/D switch implement Operating Environment: 0℃~40℃, at <80%RH Storage Environment: -10℃~50℃, at <85%RH Measurement Items: DC Voltage: 200mA(±0.5%+3D), 2000mA/ 20V/ 200V(±0.8%+5D), 1000V(±1%+5D) AC Voltage: 200V/ 750V(±2%+10D) DC Curret: 200μA/ 2000μA/ 20mA(±1.8%+2D), 200mA(±2%+2D), 10A(±2%+10D) Resistance: 200Ω(±1%+10D), 2000Ω/ 20KΩ/ 200KΩ/ 2000KΩ(±1%+4D) Diode: Yes Transistor hFE: Yes |
