Wide Software Compatibility
The 80mm Thermal Receipt Printer is compatible with major operating systems such as Windows, iOS, Android and Linux, ensuring easy integration with any business management platform.
- Home
- QIAN PC
- POS Solutions
- BUSINESS WE TRUST
- AUTHORIZED DISTRIBUTORS

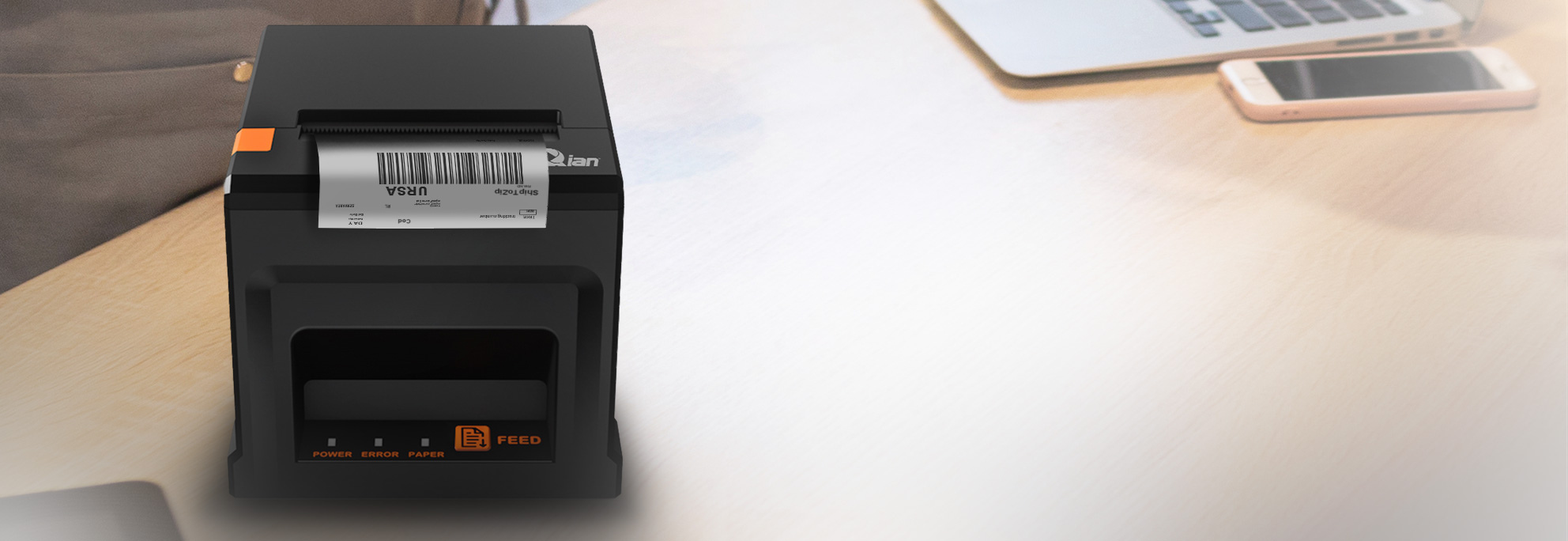

Unsurpassed Speed and Durability
With a print speed of up to 220mm per second, this printer offers fast and reliable performance to handle high transaction volumes. Plus, its print head has a guaranteed durability of up to 100km, ensuring long-term and reliable use for any business.
Direct Thermal Printing, No Consumables

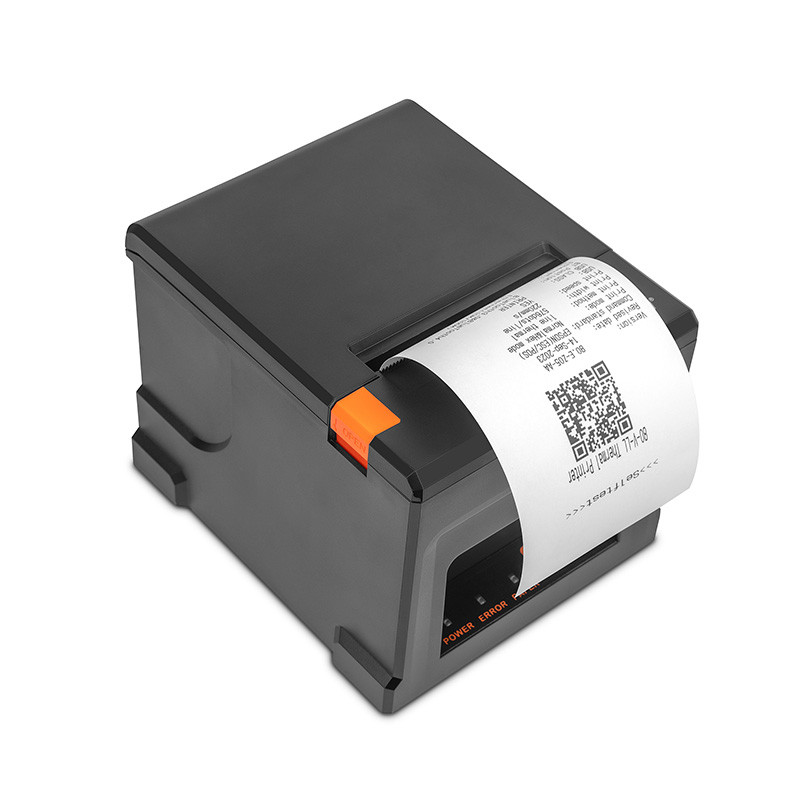

Forget recurring ink and ribbon costs with our direct thermal printing technology. With a resolution of 203 DPI, this printer ensures crisp, detailed receipts. It supports thermal paper up to 80mm wide, allowing you to generate clear, legible receipts, helping to reduce operational costs without compromising quality.

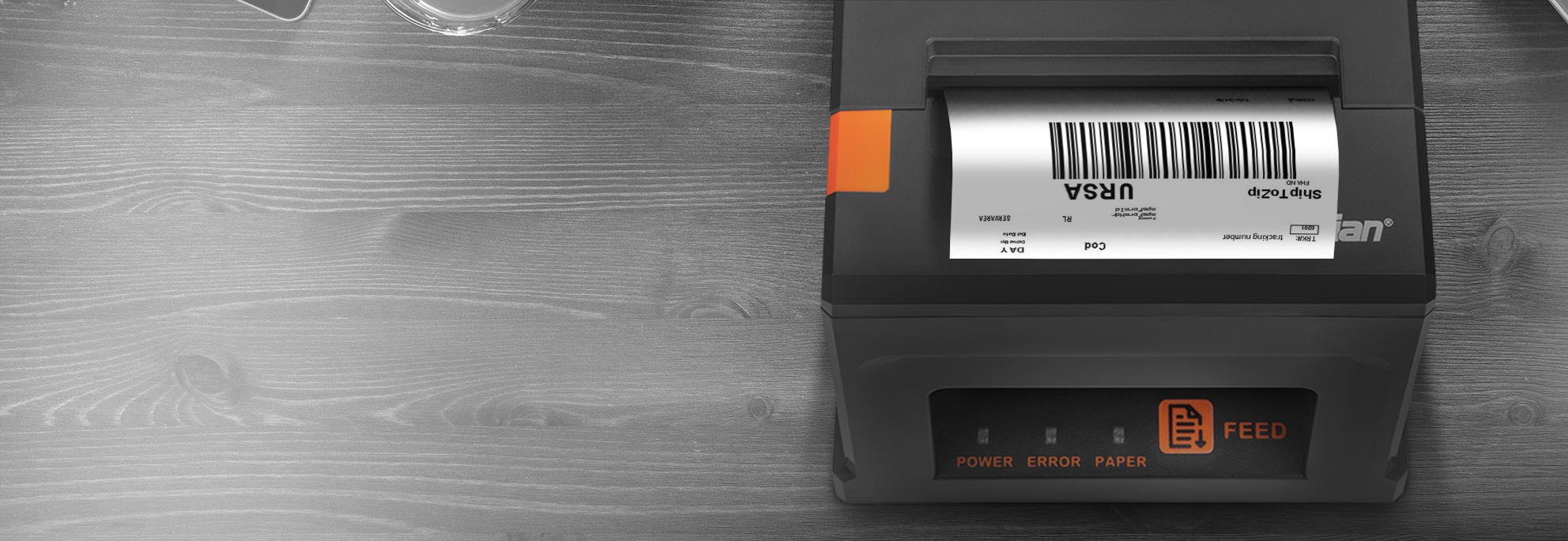

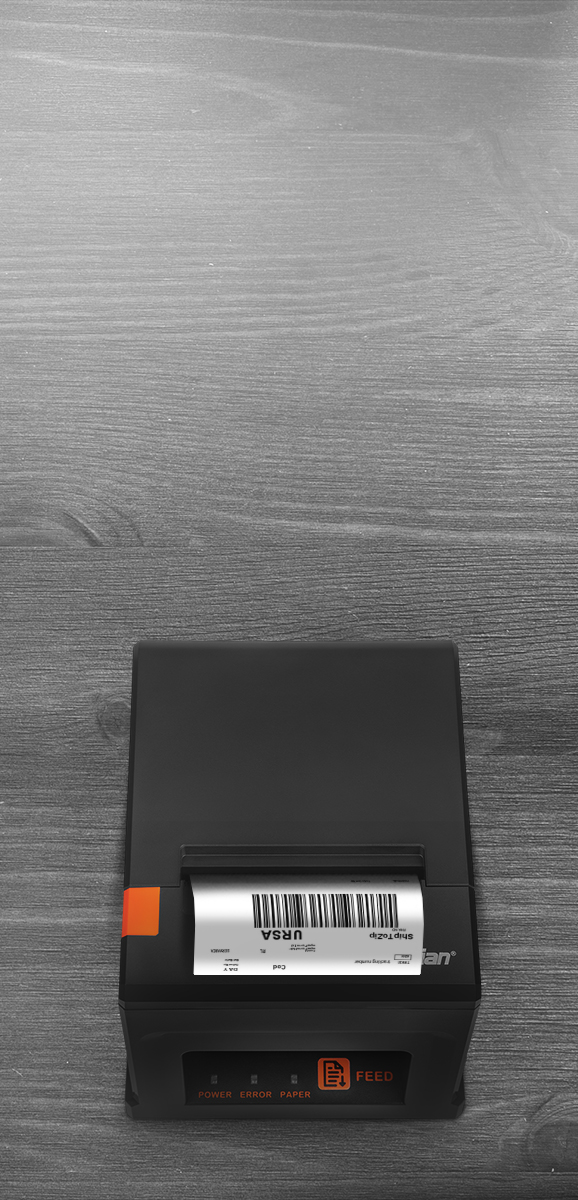

1D and 2D Barcode Support for Greater Versatility
Compatible with a wide range of 1D and 2D barcodes, including QR and PDF417, this printer can meet a variety of business needs for labeling and product tracking. Whether for retail, logistics or food service, the versatility of scanning provides you with solutions tailored to your operation.

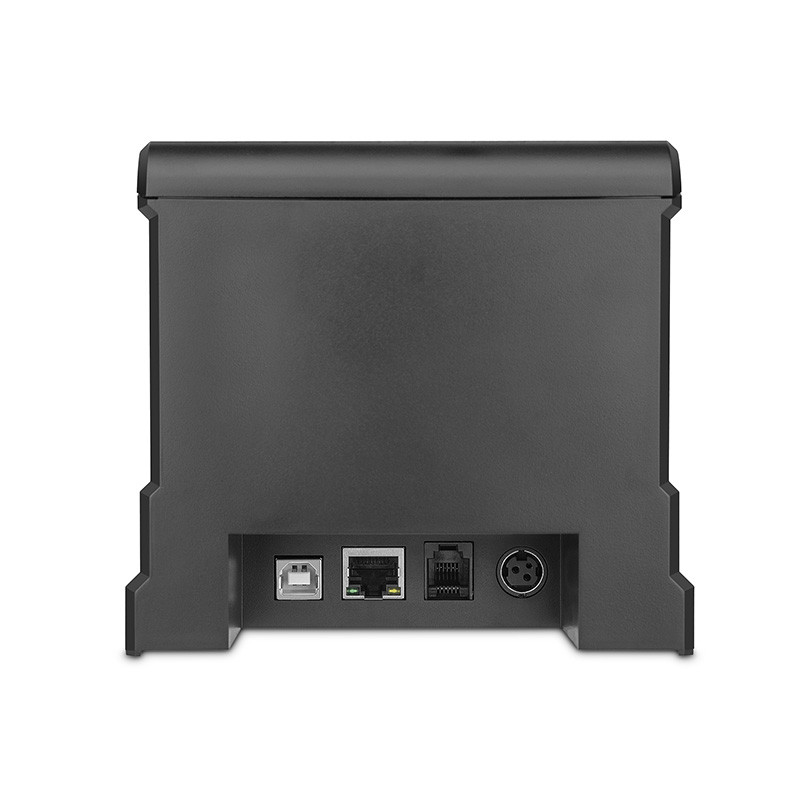

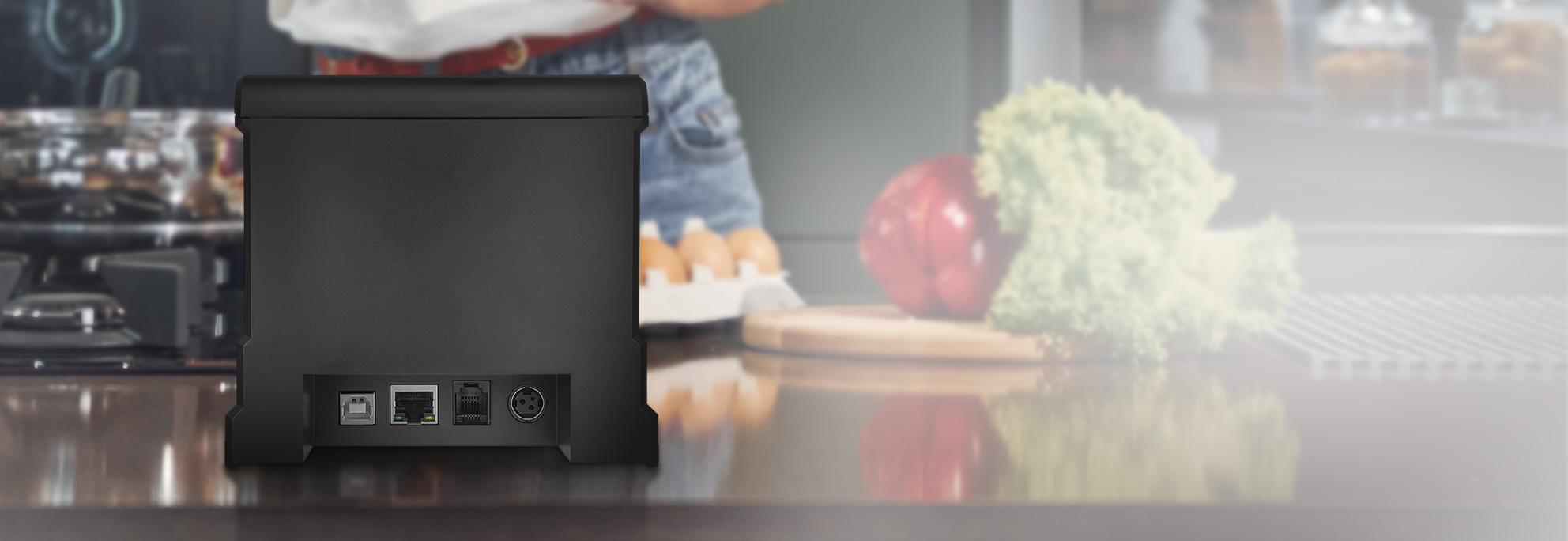

Versatile Connectivity for Simplified Management
Optimize receipt management in your business with the 80mm Thermal Receipt Printer, equipped with multiple interfaces, including USB, Bluetooth and LAN port. This versatile connectivity guarantees efficient and uninterrupted operation, perfectly adapting to the needs of companies looking for flexibility and performance in their daily operations.
| TYPE | Thermal Receipt Printer |
| INTERFACE | USB+LAN+Bluetooth |
| PRINTING METHOD | Thermal Line |
| RESOLUTION | 8 dots/ mm (203dpi), 576 Dots/Line or 512 Dots/Line |
| PRINTING SPEED | 220mm/sec. [8.7in/sec.] |
| MAXIMUM PRINTING WIDTH | 72mm [2.8in] |
| SPACING LINE | 0.125mm [0.005in] |
| PAPER | Thermal Roll Paper |
| PAPER PARAMETERS | ≤80mm [≤3.15in] |
| ROLL PAPER | Width: 79.5±0.5mm [3.13±0.02in] Thickness: 0.06~0.08mm [0.002~0.003in] |
| AUTO CUTTER | Full cut/ Half cut |
| PRINTING COMMAND | ESC/ POS |
| GRAPHICS PRINTING | Supports bitmap download and print (support each bitmap size Max.24K, download up to 5pcs) |
| CHARACTER SIZE | ANK character: Font A: 1.5×3.0mm [0.06×0.1in] (12×24 dots) Font B: 1.1×2.1mm [0.04×0.08in] (9×17 dots) Simplified/ Traditional Chinese: 3.0×3.0mm [0.1×0.1in] (24×24 dots) |
| EXTENDED SET OF CHARACTERS | C437/ Katakana/ PC850/ PC860/ PC863/ PC865/ WestEurope/ Greek/ Hebrew/ EastEurope/ Iran/ WPC1252/ PC866/ PC852/ PC858/ IranII/ Latvian/ Arabic/ PT151,1251/ PC737/ Thai |
| BARCODE | 1D Barcode: UPC-A/ UPC-E/ JAN13(EAN13)/ JAN8(EAN8)/ CODE39/ ITF/ CODABAR/ CODE93/ CODE128 2D Barcode: QR CODE/ PDF417 |
| INTEGRATED MEMORY | NV Flash 256K bytes |

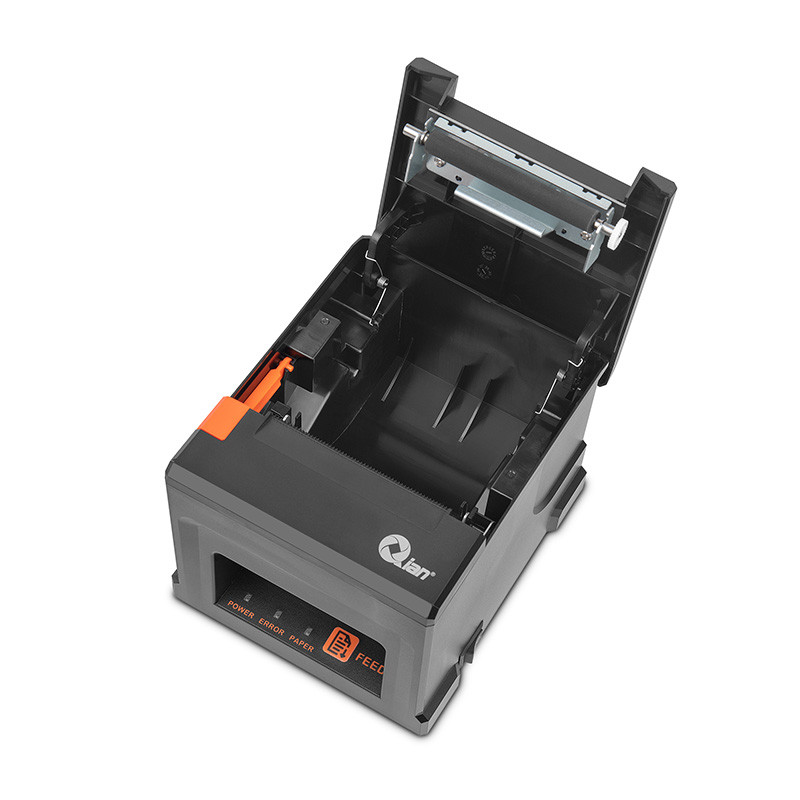

| ADDITIONAL CHARACTERISTICS | Print Head Life: 100km (print density≤12.5) Cutter Life: 1,000,000 times Feed method: Easy feed (Clamshell feed) |
| OPERATION SYSTEM | Support Windows/ Android/ Mac/ iOS/ Linux operating system. (Driver available for Windows/ Linux/ Mac) (SDK available for Android/ iOS) |
| POWER SUPPLY | Input: AC 100V-240V, 50-60Hz Output: DC 24V/ 1.5A |
| CASH DRAWER CONTROL | Cash drawer output: DC 24V/1A |
| OPERATING TEMPERATURE | 0°C ~ 45°C |
| STORAGE TEMPERATURE | -20°C ~ 60°C |
| OPERATING HUMIDITY | 10%~80% (No condensation) |
| STORAGE HUMIDITY | 10%~90% (No condensation) |
| DIMENSIONS | 135mm(W) × 122mm(H) × 160mm(D) [5.3in(W) × 4.8in(H) × 6.3in(D)] |
| WEIGHT | 0.72kg [1.6lbs] |
