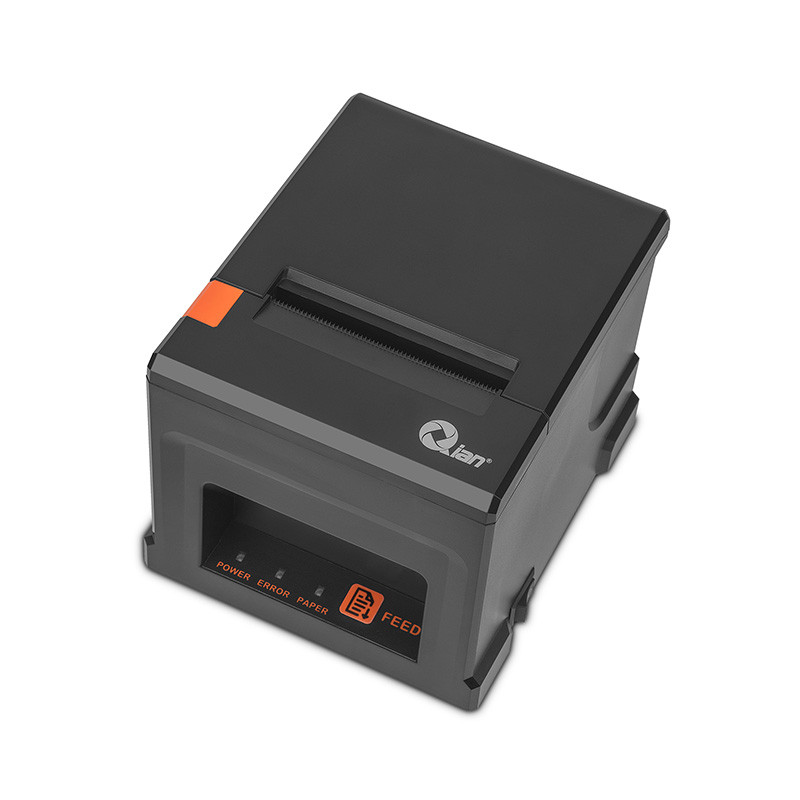

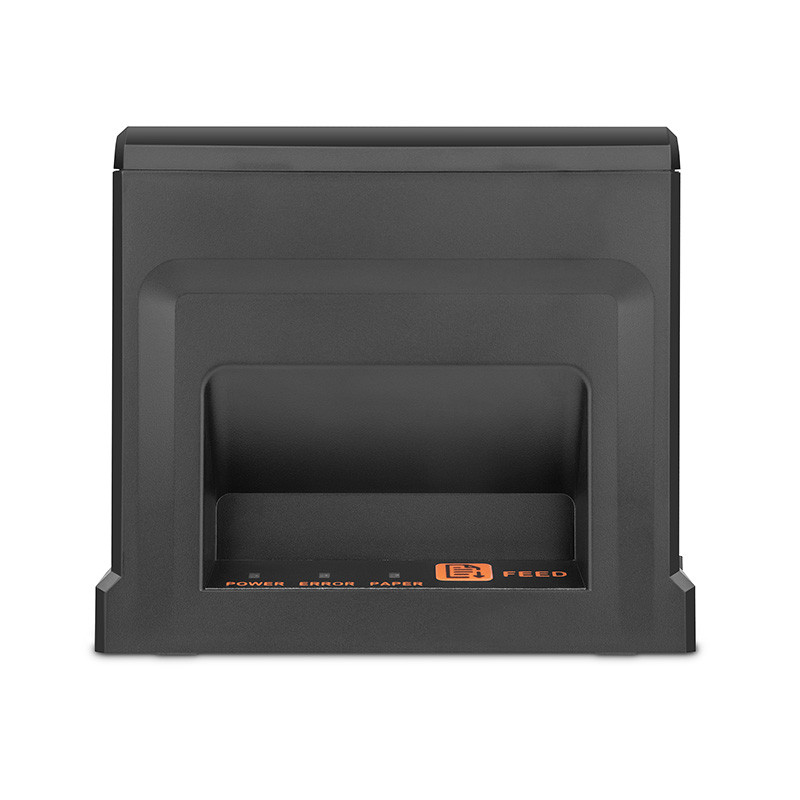

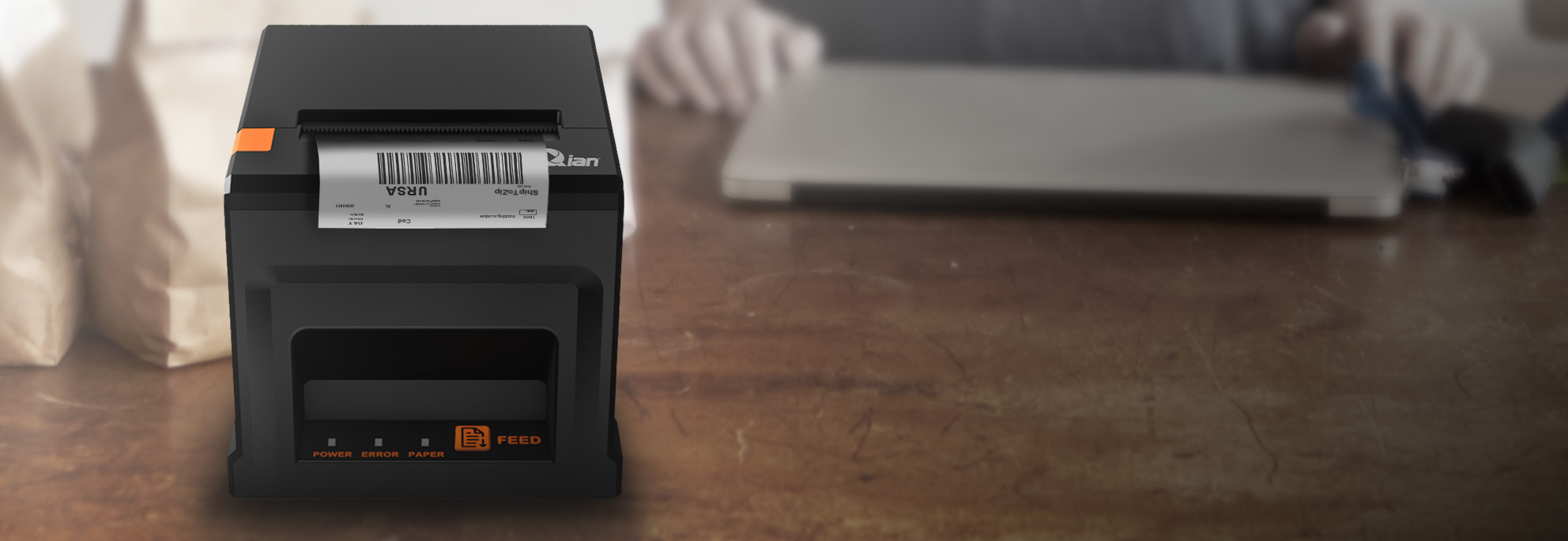

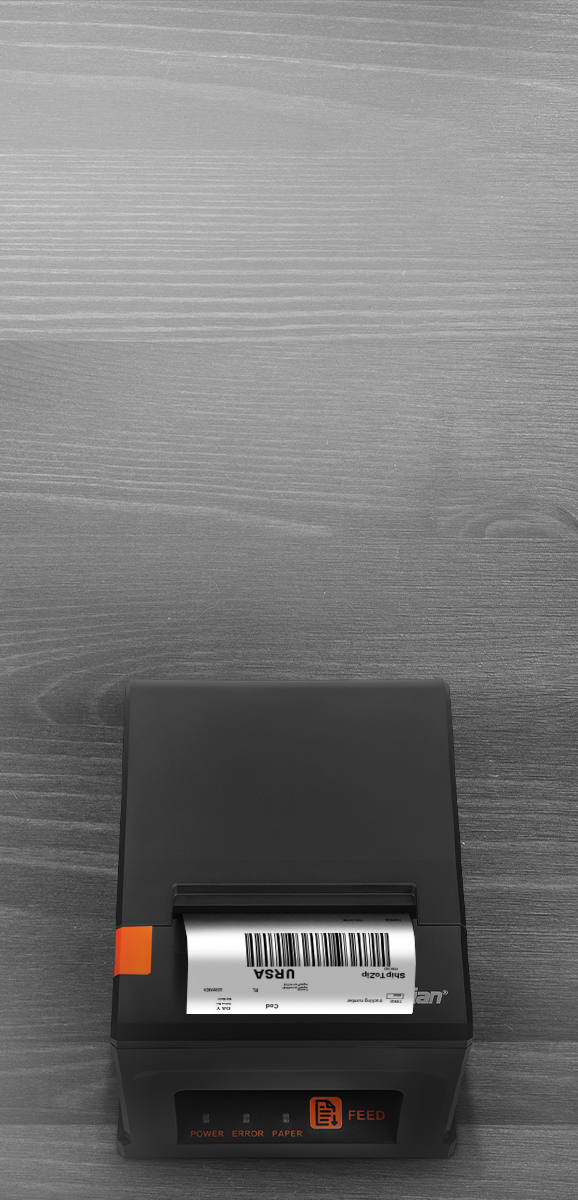

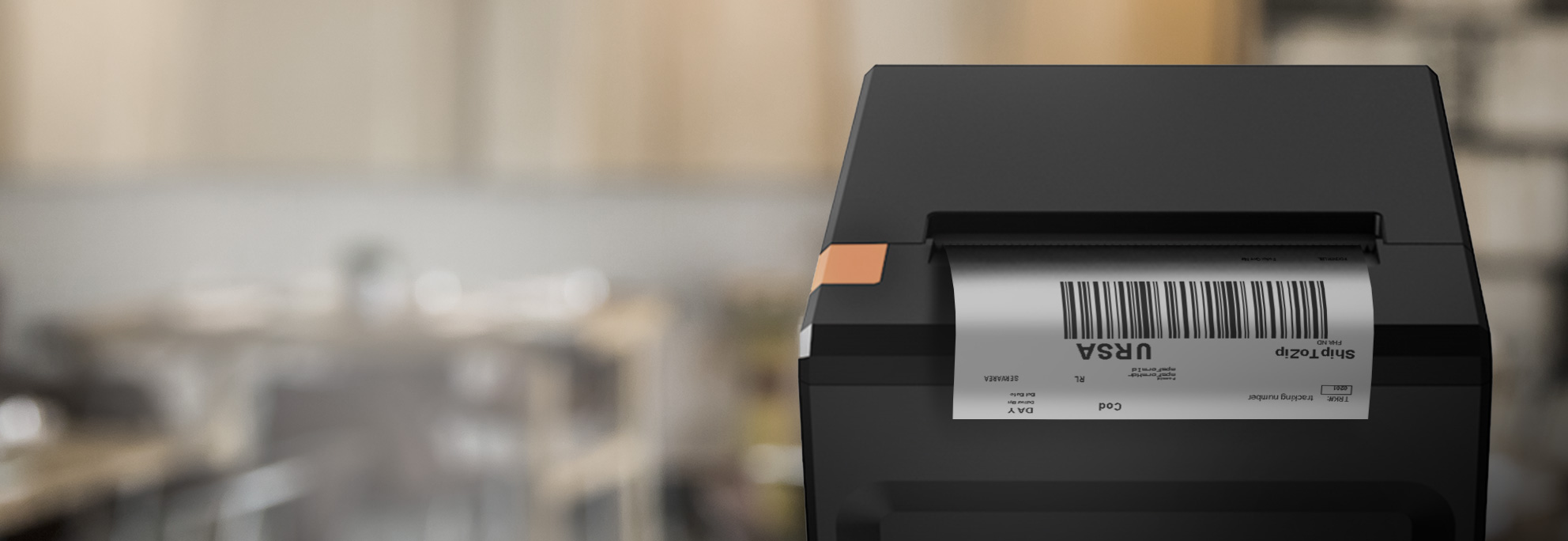

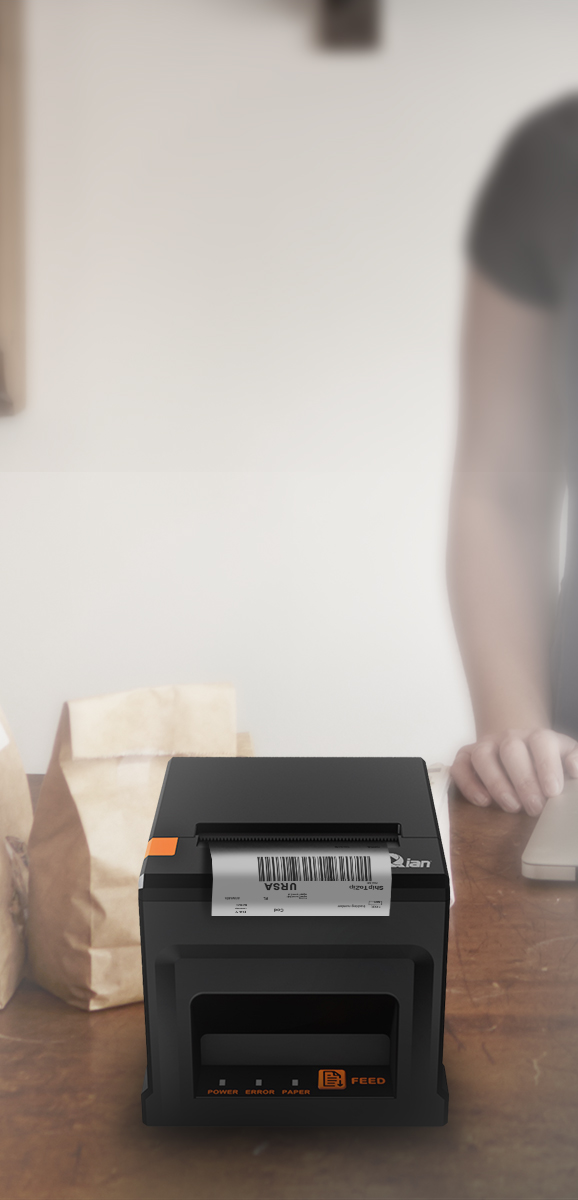

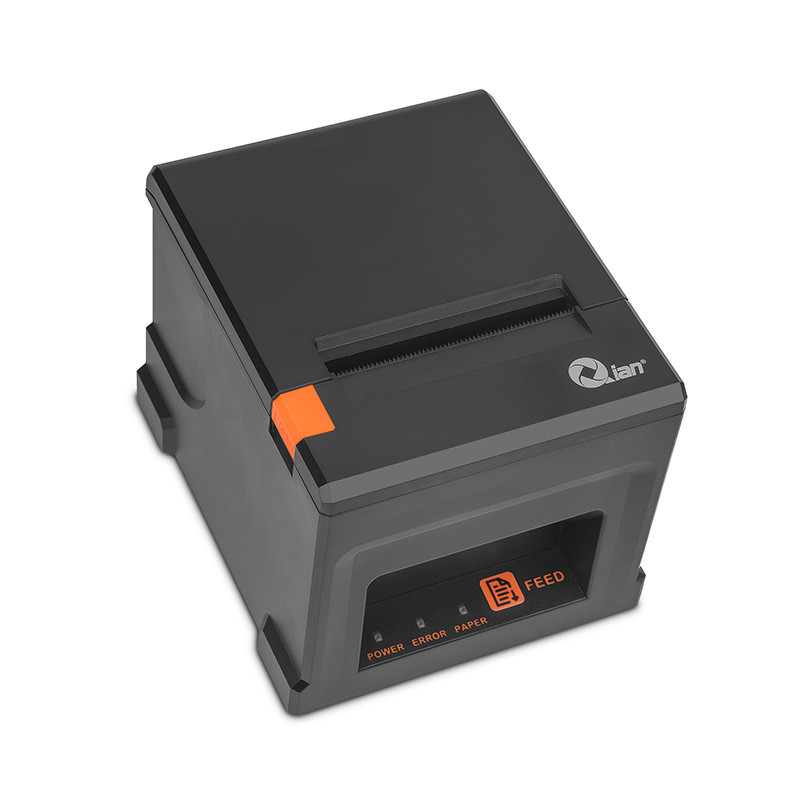

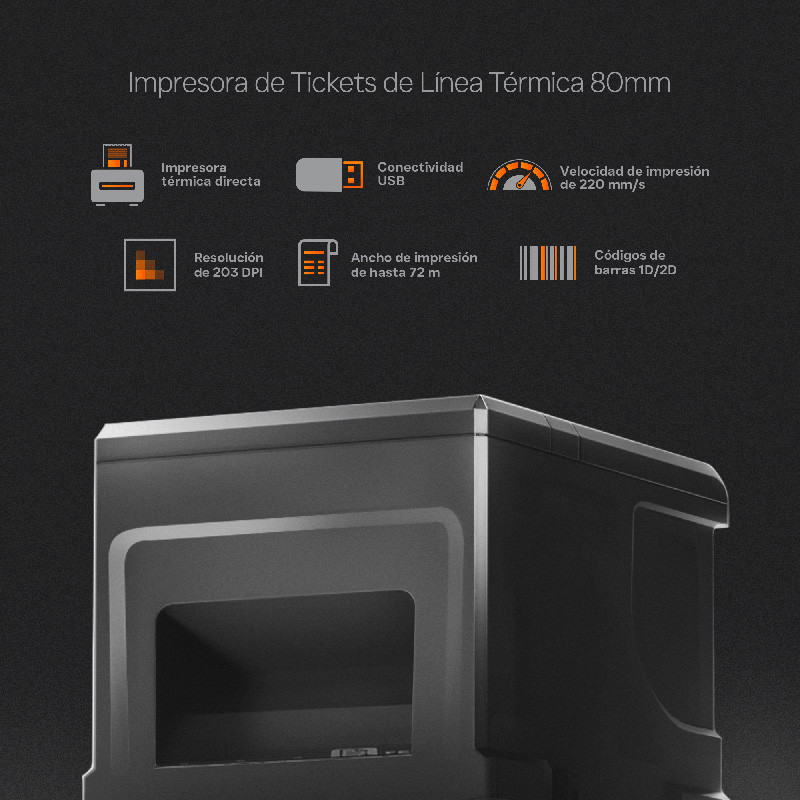

QIAN Thermal Receipt Printer 80mm with USB+LAN - SKU: QOP-T80UL-RI-02

- Interfaz USB + LAN para una conectividad versátil y moderna.
- Impresión sorprendentemente rápida a 220mm/s, asegurando una creación de recibos ágil y eficiente.
- Maximiza tu capacidad de impresión con el soporte de papel de hasta 80mm de ancho.
- Simplifica tu proceso de impresión con el cortador automático incluido, genera un corte limpio y preciso después de cada impresión.
- Confía en la durabilidad de tu impresora con el cabezal de impresión de alta calidad, ofreciendo una vida útil de hasta 100km.

Availability: Coming Soon

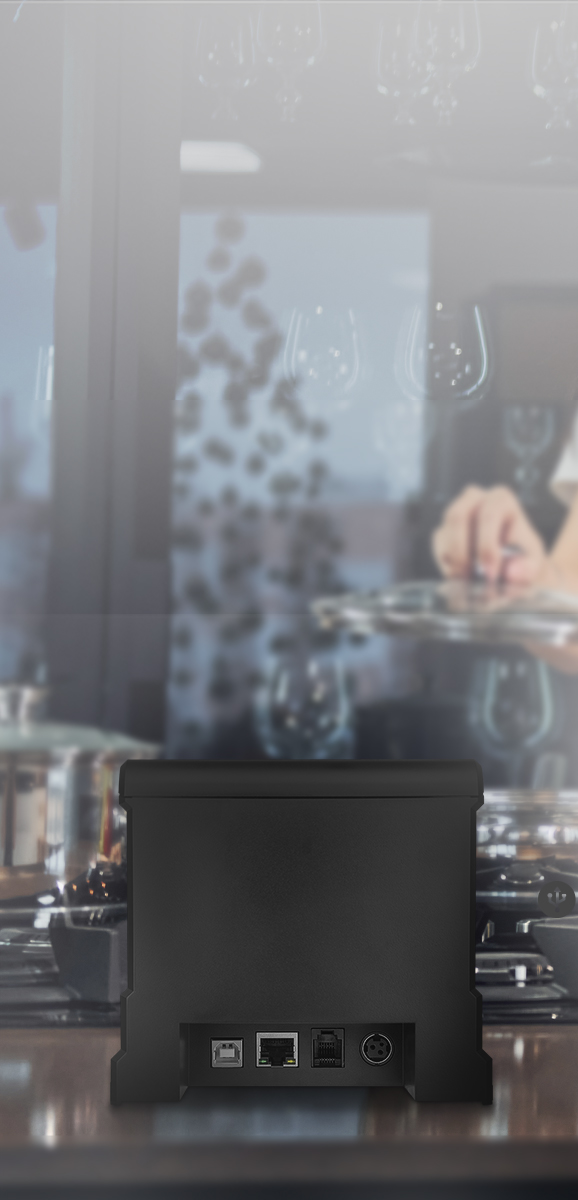

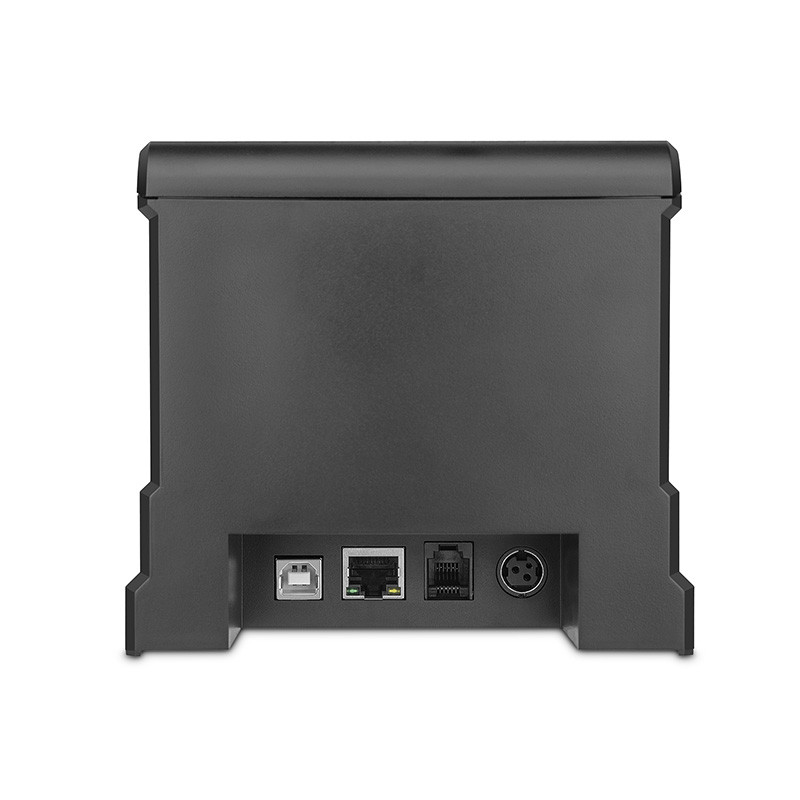

USB + LAN connectivity

It connects quickly to any POS system or management software thanks to its USB and LAN ports. Ideal for businesses that require easy installation and a stable connection.

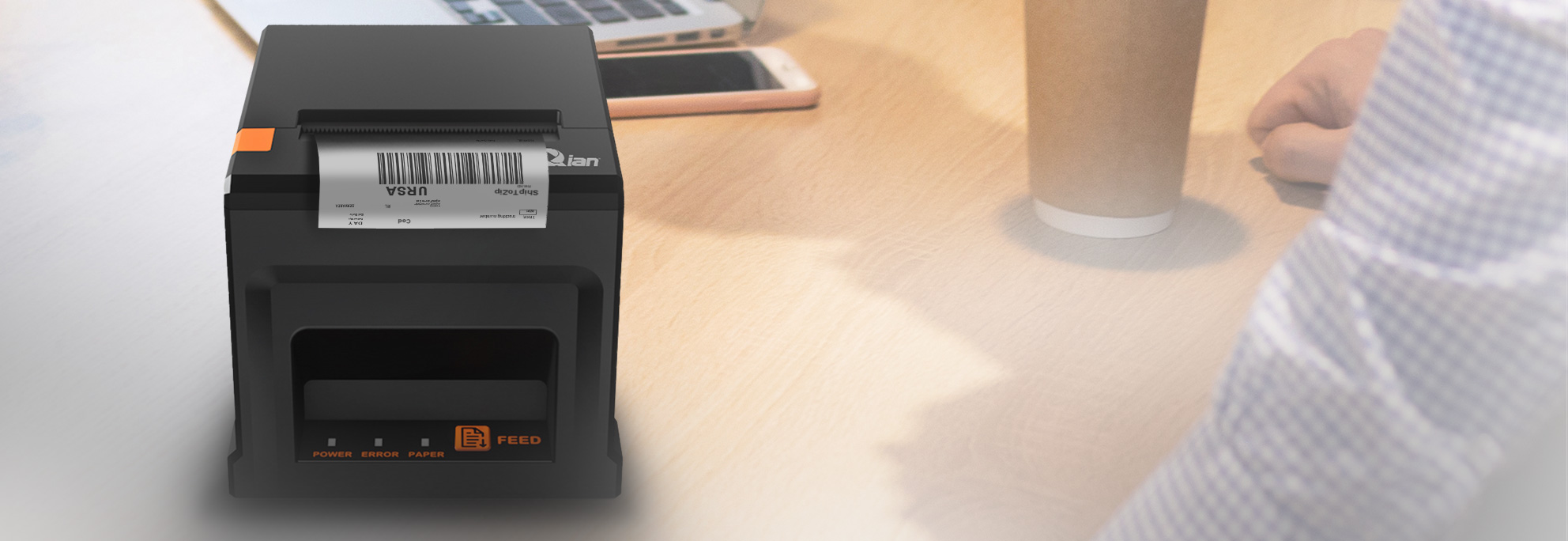

Fast printing of 220mm/s

Its speed allows receipts to be issued in seconds, streamlining workflow during peak hours and improving the customer experience.

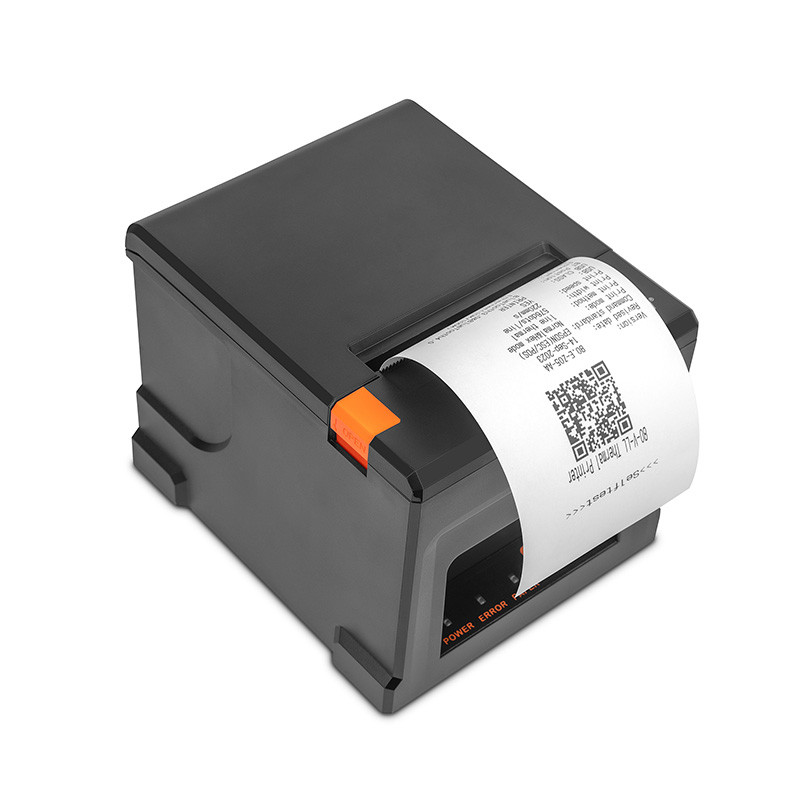

Automatic anti-jam cutter

The automatic cutter prevents jams and makes precise cuts after every print. Designed to last over 1 million cuts without fail.

Durable thermal head

It supports up to 100 km of printing, reducing maintenance and ensuring reliable operation day after day.

Advanced Compatibility

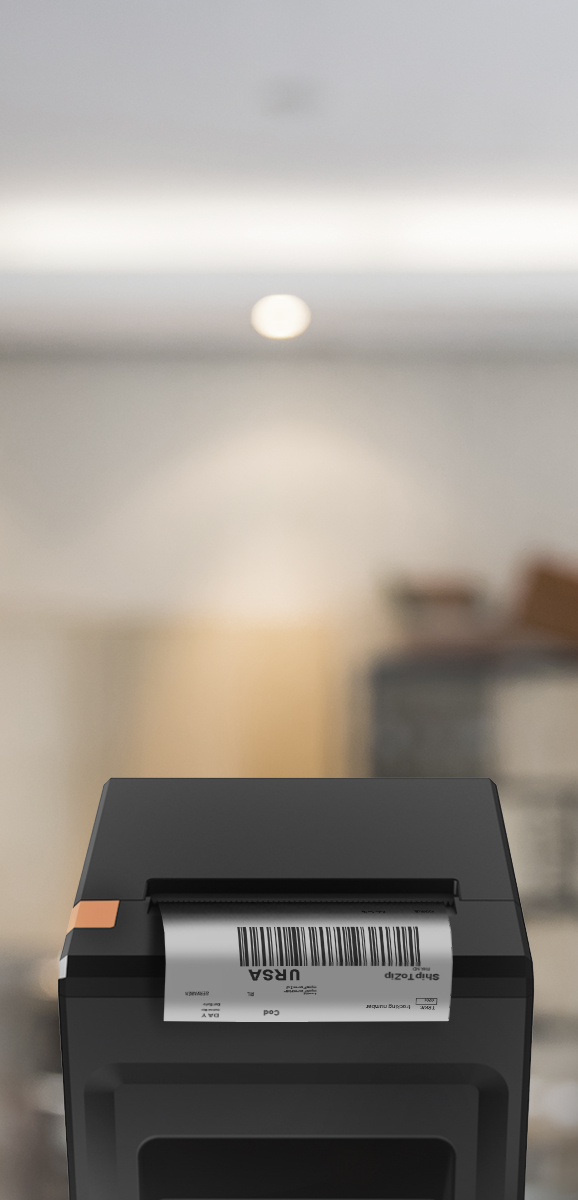

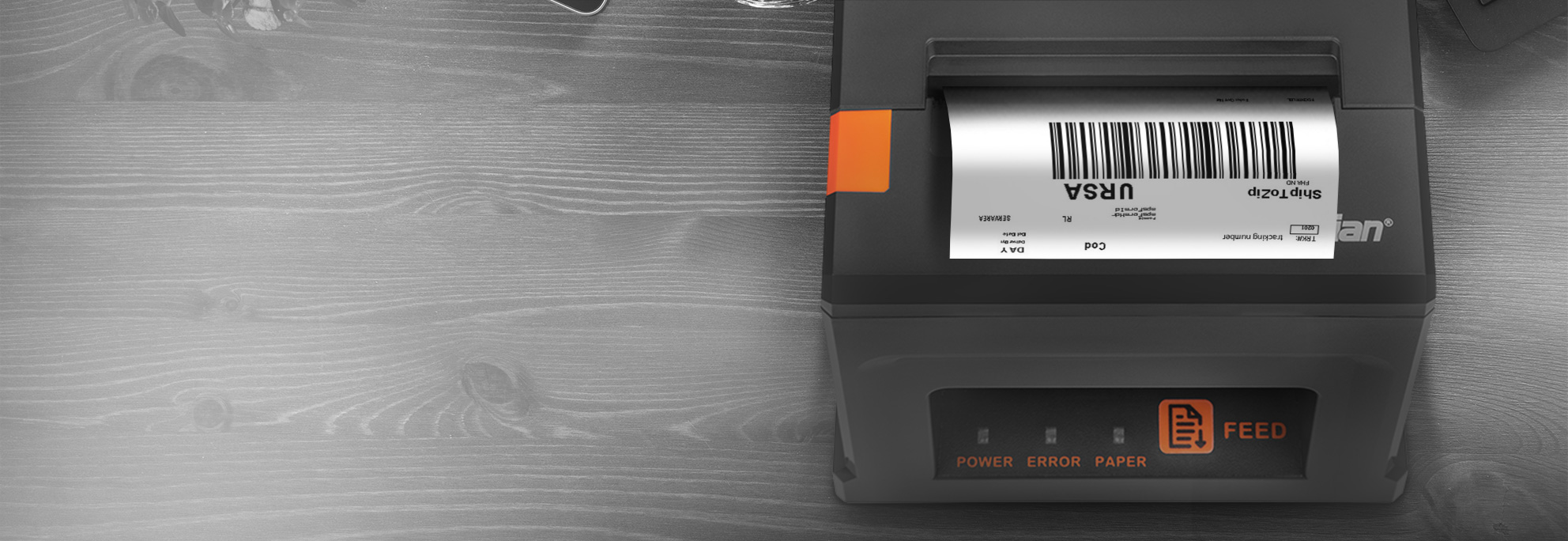

It prints 1D, QR codes, and other formats, and is compatible with EPSON ESC/POS commands, making it easy to use in retail, restaurants, and logistics.

Technical sheet (QOP-T80UL-RI-02)

Manual (QOP-T80UL-RI-02)

Download DRIVERS (QOP-T80UL-RI-02)

Sales Kit (QOP-T80UL-RI-02)

Warranty

TYPE	Thermal Receipt Printer
INTERFACE	USB+LAN
PRINTING METHOD	Thermal Line
RESOLUTION	8 dots /mm (203dpi), 576 Dots/Line or 512 Dots/Line
PRINTING SPEED	220mm/sec. [8.7in/sec.]
MAXIMUM PRINTING WIDTH	72mm [2.8in]
SPACING LINE	0.125mm [0.005in]
PAPER	Thermal Roll Paper
PAPER PARAMETERS	≤80mm [≤3.15in]
ROLL PAPER	Width: 79.5±0.5mm [3.13±0.02in] Thickness: 0.06~0.08mm [0.002~0.003in]
AUTO CUTTER	Full cut/ Half cut
PRINTING COMMAND	ESC/ POS
GRAPHICS PRINTING	Supports bitmap download and print (support each bitmap size Max.24K, download up to 5pcs)
CHARACTER SIZE	ANK character: Font A: 1.5×3.0mm [0.06×0.1in] (12×24 dots) Font B: 1.1×2.1mm [0.04×0.08in] (9×17 dots) Simplified/ Traditional Chinese: 3.0×3.0mm [0.1×0.1in] (24×24 dots)
EXTENDED SET OF CHARACTERS	C437/ Katakana/ PC850/ PC860/ PC863/ PC865/ WestEurope/ Greek/ Hebrew/ EastEurope/ Iran/ WPC1252/ PC866/ PC852/ PC858/ IranII/ Latvian/ Arabic/ PT151,1251/ PC737/ Thai
BARCODE	1D Barcode: UPC-A/ UPC-E/ JAN13(EAN13)/ JAN8(EAN8)/ CODE39/ ITF/ CODABAR/ CODE93/ CODE128 2D Barcode: QR CODE/ PDF417
INTEGRATED MEMORY	NV Flash 256K bytes

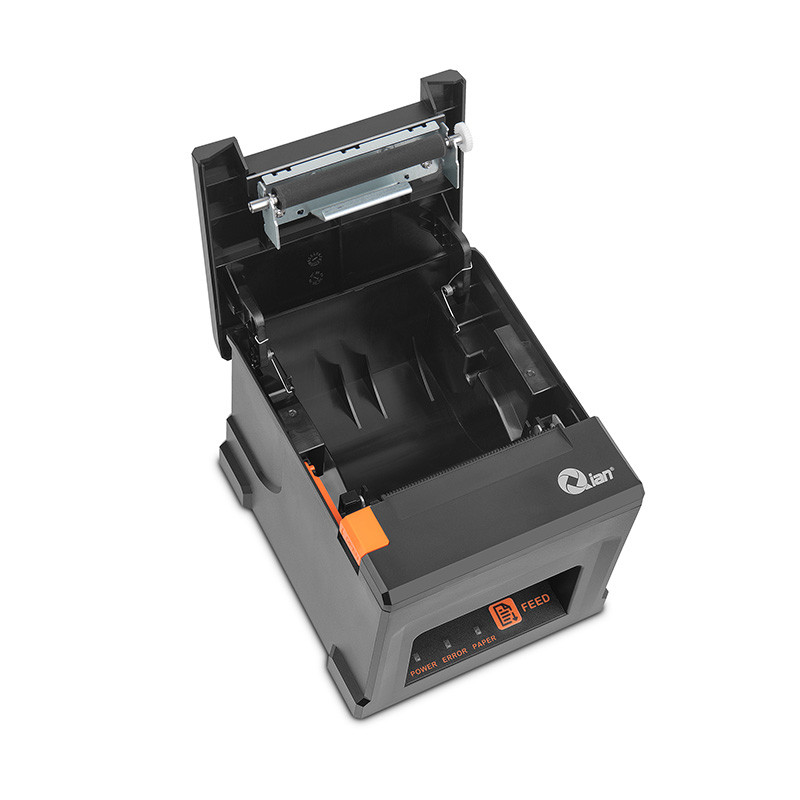

ADDITIONAL CHARACTERISTICS	Print Head Life: 100km (print density≤12.5) Cutter Life: 1,000,000 times Feed method: Easy feed (Clamshell feed)
OPERATION SYSTEM	Support Windows/ Android/ Mac/ iOS/ Linux operating system. (Driver available for Windows/ Linux/ Mac) (SDK available for Android/ iOS)

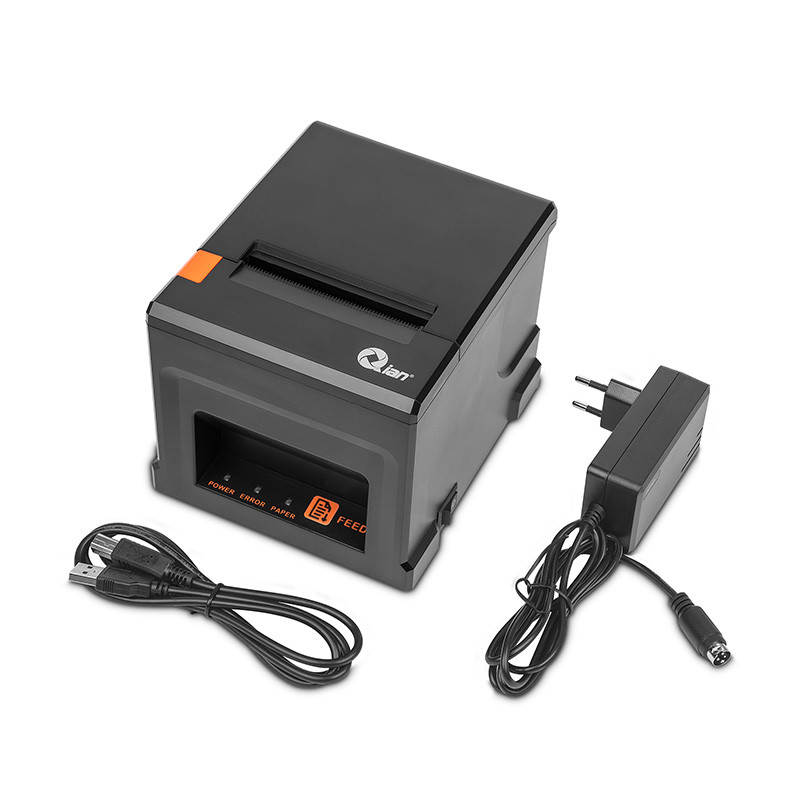

POWER SUPPLY	Input：AC 100V-240V,50-60Hz Output：DC 24V/ 1.5A
CASH DRAWER CONTROL	Cash drawer output: DC 24V/1A
OPERATING TEMPERATURE	0°C ~ 45°C
STORAGE TEMPERATURE	-20°C ~ 60°C
OPERATING HUMIDITY	10%~80% (No condensation)
STORAGE HUMIDITY	10%~90% (No condensation)

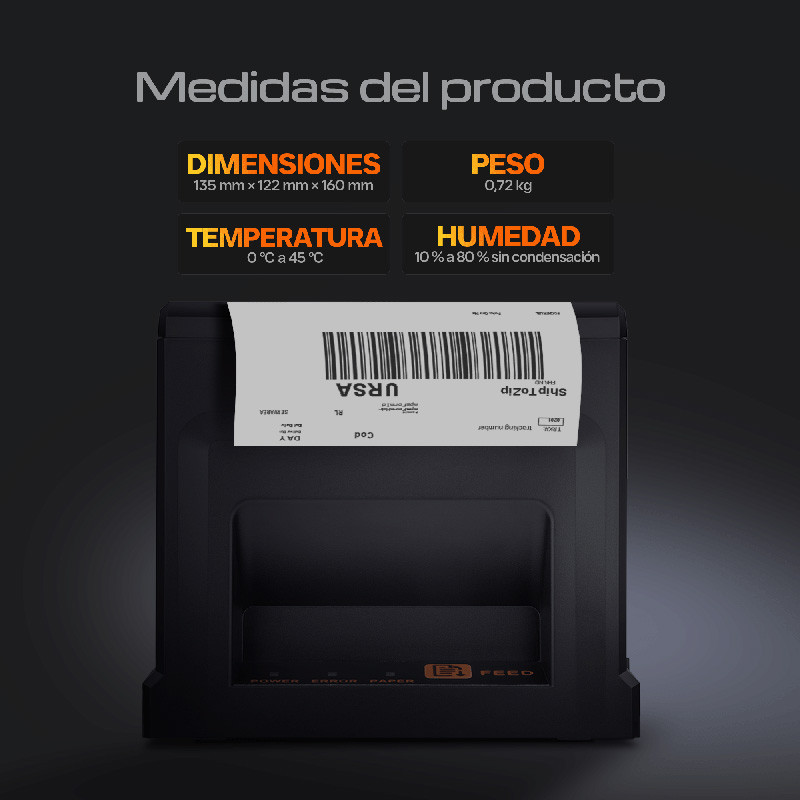

DIMENSIONS	135mm(W) × 122mm(H) × 160mm(D) [5.3in(W) × 4.8in(H) × 6.3in(D)]
WEIGHT	0.72kg [1.6lbs]
