Great Power
This UPS has a capacity of 500VA of power and voltage of 300W, with 110/120 VAC input and 110/115/120 VAC output, with four power outputs.
NO MORE BLACKOUTS
Its fast-charging lead-acid battery (4-6 hours to charge above 90%) protects against blackouts that could damage your equipment or lose important files and hours of work.
COMPACT AND PRACTICAL
It fits easily under or even on top of a desk, and its discreet profile won't draw too much attention to itself.
FUNCTIONAL

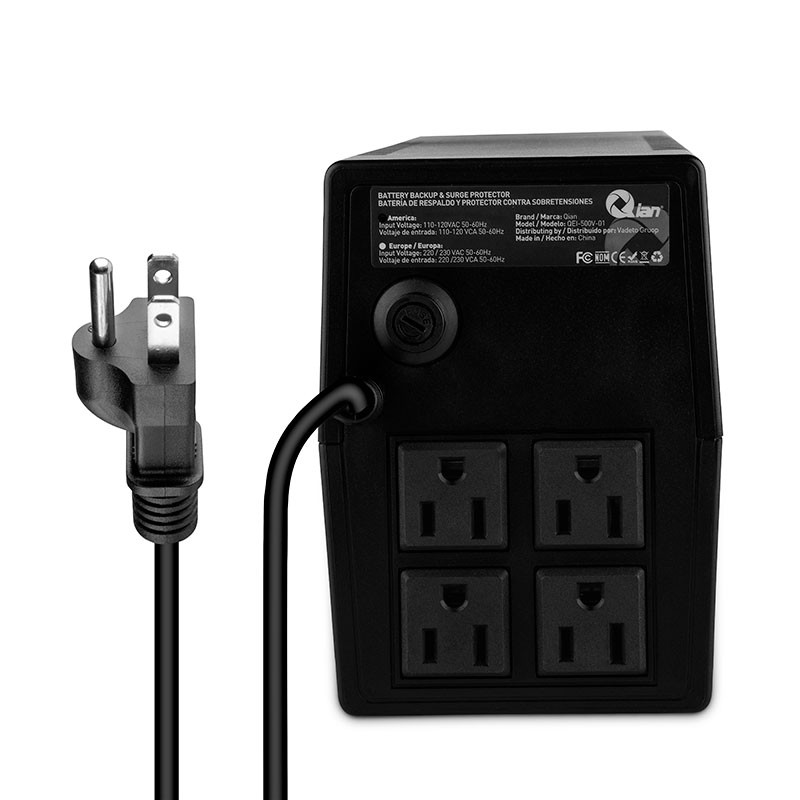

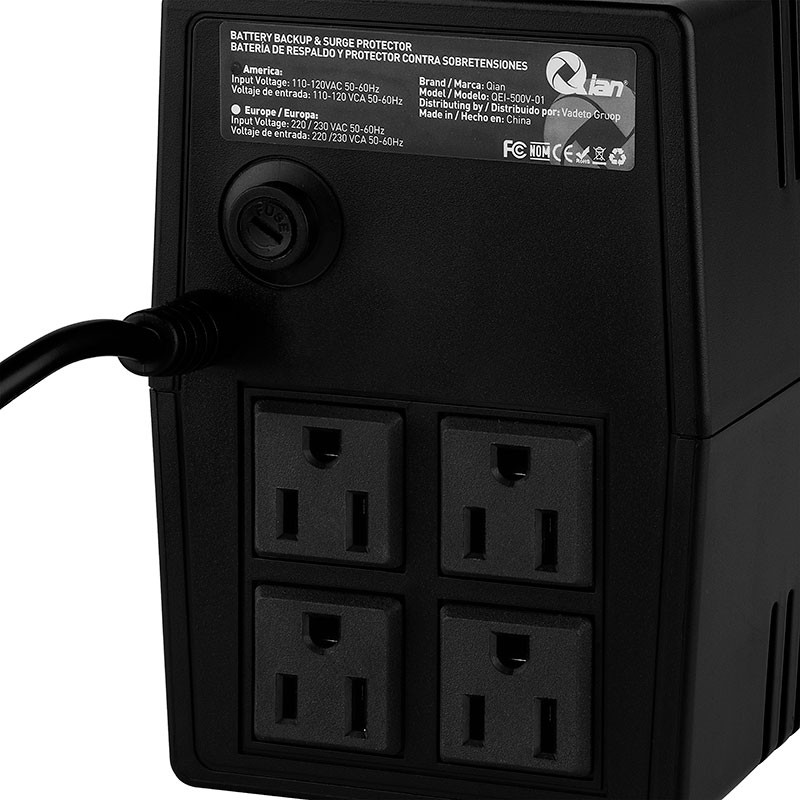

It includes four power outlets, LED status indicators, low battery alarm, and generates less than 40 dB of noise during operation.
| UPS CAPACITY | 500VA/300W |
| INPUT VOLTAGE | America 110/120VAC Europe 220/230 VAC |
| INPUT VOLTAGE RANGE | America 81-134VAC / 89-145VAC Europe 140-290 VAC / 140-300 VAC |
| FREQUENCY RANGE | 50Hz/60Hz(Auto sensing), 50Hz/60Hz ± 1Hz (Bat Mode) |
| OUTPUT VOLTAGE | America 110/115/120VAC Europe 220/230 VAC |
| AC VOLTAGE REGULATION | ±10% (Bat Mode) |
| TRANSFER TIME | Typical 2-6ms |
| WAVEFORM | Simulated Sine wave (Bat Mode) |
| BATTERY TYPE | Lead-acid battery, 12V/5.6Ah*1, Floating Charging Voltage:13.7VDC |
| DIMENSIONS | D: 11.53" x W: 3.97" x H: 5.59" Inches |
| RECHARGE TIME | 4-6 hours recover to 90% capacity, Floating Charging Voltage: 13.7VDC |
| FULL PROTECTION | Overload, discharge, over charge, short circuit, over / under voltage protection |
| LED DISPLAY | Line mode: Green lighting, Battery mode: Yellow flashing, Fault: Red lighting |
| BATTERY ALARM MODES | Battery mode: Sounding every 10 seconds, Low battery: Sounding every second, Overload: Sounding every 0.5 seconds, Battery Replacement Alarm: Sounding every 2 seconds, Fault: Continuously sounding |
| NET. WEIGHT | 8.15 lb |
| HUMIDITY | 0-90% Relative Humidity 0-40 ℃ (Non-condensing) |
| NOISE LEVEL | Less than 40dB |
| TOP 5 PRODUCT FEATURES | Compact size and ergonomic design: it can be placed on a desk top or other convenient location, Perfect protection for overload ,short circuit ,over-voltage ,low-voltage and over-heating etc, Excellent microprocessor control optimizes reliability, Off mode charging and cold start function, Line mode, Battery mode and fault alarm, Auto restart while AC is recovering, Echo friendly and user friendly, Low transfer time (<5ms) , Frequency auto adaptive |
