| INTERFACE | USB |
| BAUD RATE | 9600 bps |
| BRIGHTNESS | 2000cd |
| DATA BIT | 1 bit |
| HANDSHAKE SIGNAL | No |
| ELECTRICAL CHARACTERISTICS | DC12 (interface 4 ps) |

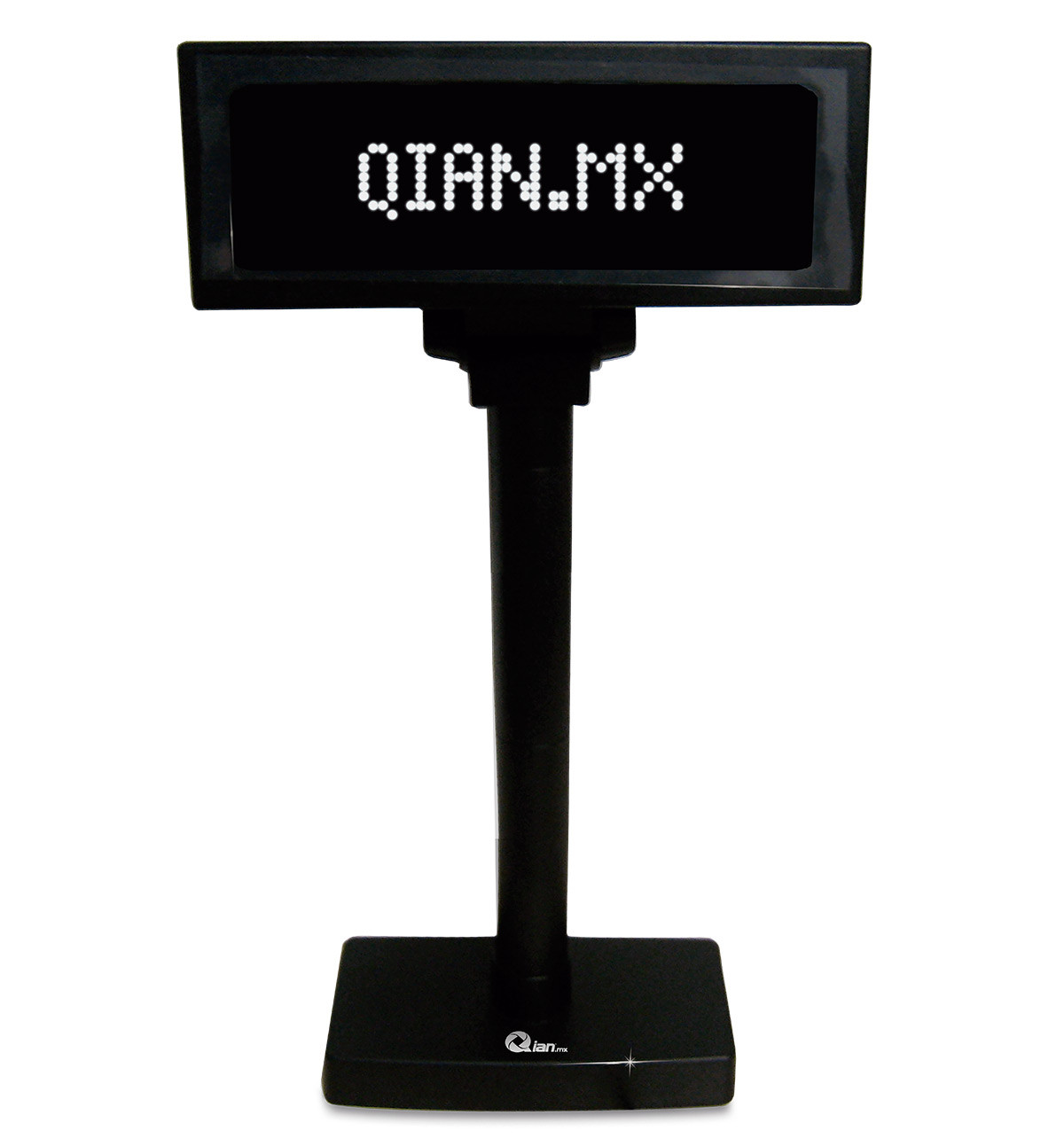

| SCREEN | Bright Blue-Green Fluorescent Display VFD |
| DISPLAY FEATURES | 2 lines z 20 characters / Line, 40 characters, 5 x 7 dots |
| DISPLAY AREA | 6.29 in x 0.9 in |
| FONT SIZE | 0.4 in x 0.27 in |
| MTBF | 25,000 hrs |
| PANEL DIMENSIONS | 3.14 x 8.85 x 1.47 in |
| SUPPORT DIMENSIONS | 18.9 in |
| SHORT BRACKET | 8.85in |
| BASE DIMENSIONS | 7.2 x 3.7 x 0.9 in |
| PITCH MOTION ANGLE | 45° |
| WEIGHT | 2.64 lb |
| OPERATING TEMPERATURE | -20~ 70 A18 |
| STORAGE TEMPERATURE | -40~80 A19 |
| OPERATING HUMIDITY | 10~ 85% |
| STORAGE HUMIDITY | 10~90% |
